Ultra-high extinction-ratio light modulation by electrically tunable metasurface using dual epsilon-near-zero resonances

使用双ε-近零共振的电可调超表面实现超高消光比光调制
デュアルイプシロン-ほぼゼロの共鳴を使用した電気的に調整可能なメタ表面による超高消光比光変調
0에 가까운 이중 엡실론 공명을 사용하여 전기적으로 조정 가능한 메타표면에 의한 초고소광비 광 변조
Modulación de luz con relación de extinción ultra alta mediante una metasuperficie sintonizable eléctricamente mediante resonancias duales épsilon cercanas a cero
Modulation de la lumière à taux d'extinction ultra élevé par une métasurface accordable électriquement à l'aide de deux résonances epsilon proches de zéro
Модуляция света со сверхвысоким коэффициентом экстинкции с помощью электрически настраиваемой метаповерхности с использованием двойных эпсилон-близких к нулю резонансов

Arash Nemati ¹ ², Qian Wang ¹, Norman Soo Seng Ang ¹, Weide Wang ¹, Minghui Hong ², Jinghua Teng 滕京华 ¹

¹ Institute of Materials Research and Engineering, Agency for Science, Technology and Research (A*STAR), 2 Fusionopolis Way, Singapore 138634, Singapore
² Department of Electrical and Computer Engineering, National University of Singapore, Engineering Drive 3, Singapore 117576, Singapore

https://doi.org/10.29026/oea.2021.200088

https://www.oejournal.org/article/doi/10.29026/oea.2021.200088

Opto-Electronic Advances, 25 July 2021

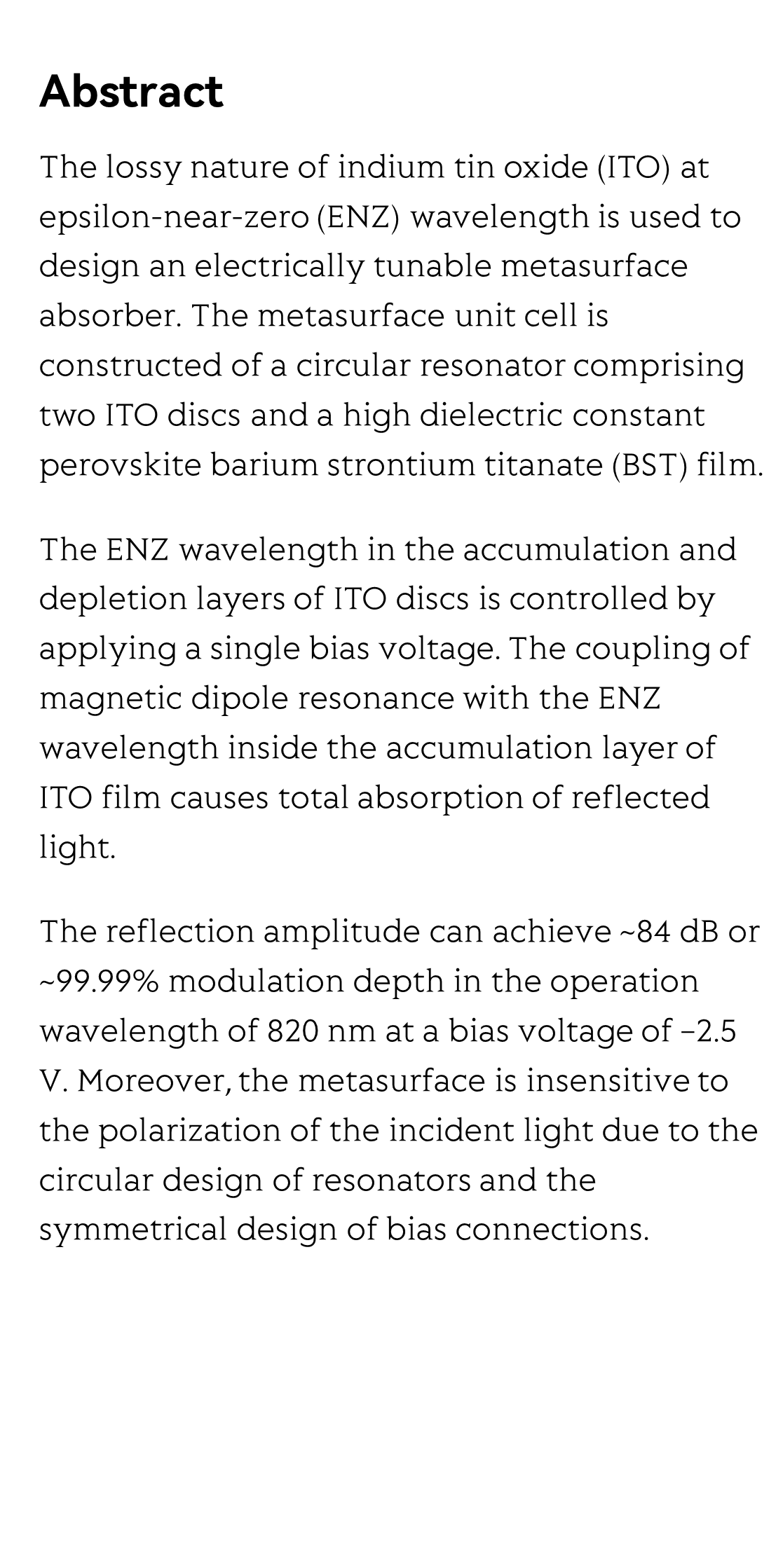

Abstract

The lossy nature of indium tin oxide (ITO) at epsilon-near-zero (ENZ) wavelength is used to design an electrically tunable metasurface absorber. The metasurface unit cell is constructed of a circular resonator comprising two ITO discs and a high dielectric constant perovskite barium strontium titanate (BST) film.

The ENZ wavelength in the accumulation and depletion layers of ITO discs is controlled by applying a single bias voltage. The coupling of magnetic dipole resonance with the ENZ wavelength inside the accumulation layer of ITO film causes total absorption of reflected light.

The reflection amplitude can achieve ~84 dB or ~99.99% modulation depth in the operation wavelength of 820 nm at a bias voltage of −2.5 V. Moreover, the metasurface is insensitive to the polarization of the incident light due to the circular design of resonators and the symmetrical design of bias connections.
