A highly sensitive LITES sensor based on a multi-pass cell with dense spot pattern and a novel quartz tuning fork with low frequency
一种基于密集光斑多通单元和新型低频石英音叉的高灵敏度LITES传感器
高密度スポットマルチパスユニットと新型低周波石英音叉に基づく高感度LITESセンサ
고감도 LITES 센서, 밀집 반점 멀티플렉서 및 새로운 저주파 쿼츠 포크를 기반으로 한 고감도
Un sensor lites de alta sensibilidad basado en una unidad multipunto de manchas densas y un nuevo diapasón de cuarzo de baja frecuencia
Un capteur lites haute sensibilité basé sur une cellule Multi - passe à spot dense et un nouveau diapason à quartz basse fréquence
Высокочувствительный датчик LITES, основанный на многоходовых элементах плотного пятна и новых низкочастотных кварцевых камертонах
Yahui Liu 刘亚辉 ¹ ², Shunda Qiao 乔顺达 ¹ ², Chao Fang 房超 ¹ ², Ying He 何应 ¹ ², Haiyue Sun 孙海岳 ¹ ², Jian Liu 刘俭 ³, Yufei Ma 马欲飞 ¹ ²
¹ National Key Laboratory of Science and Technology on Tunable Laser, Harbin Institute of Technology, Harbin 150000 China
中国 哈尔滨 哈尔滨工业大学 可调谐（气体）激光技术国家级重点实验室
² Zhengzhou Research Institute, Harbin Institute of Technology, Zhengzhou 450000, China
中国 郑州 哈尔滨工业大学 郑州研究院
³ Advanced Microscopy and Instrumentation Research Center, School of Instrumentation Science and Engineering, Harbin Institute of Technology, Harbin 150080, China
中国 哈尔滨 哈尔滨工业大学 仪器科学与工程学院 现代显微仪器研究所

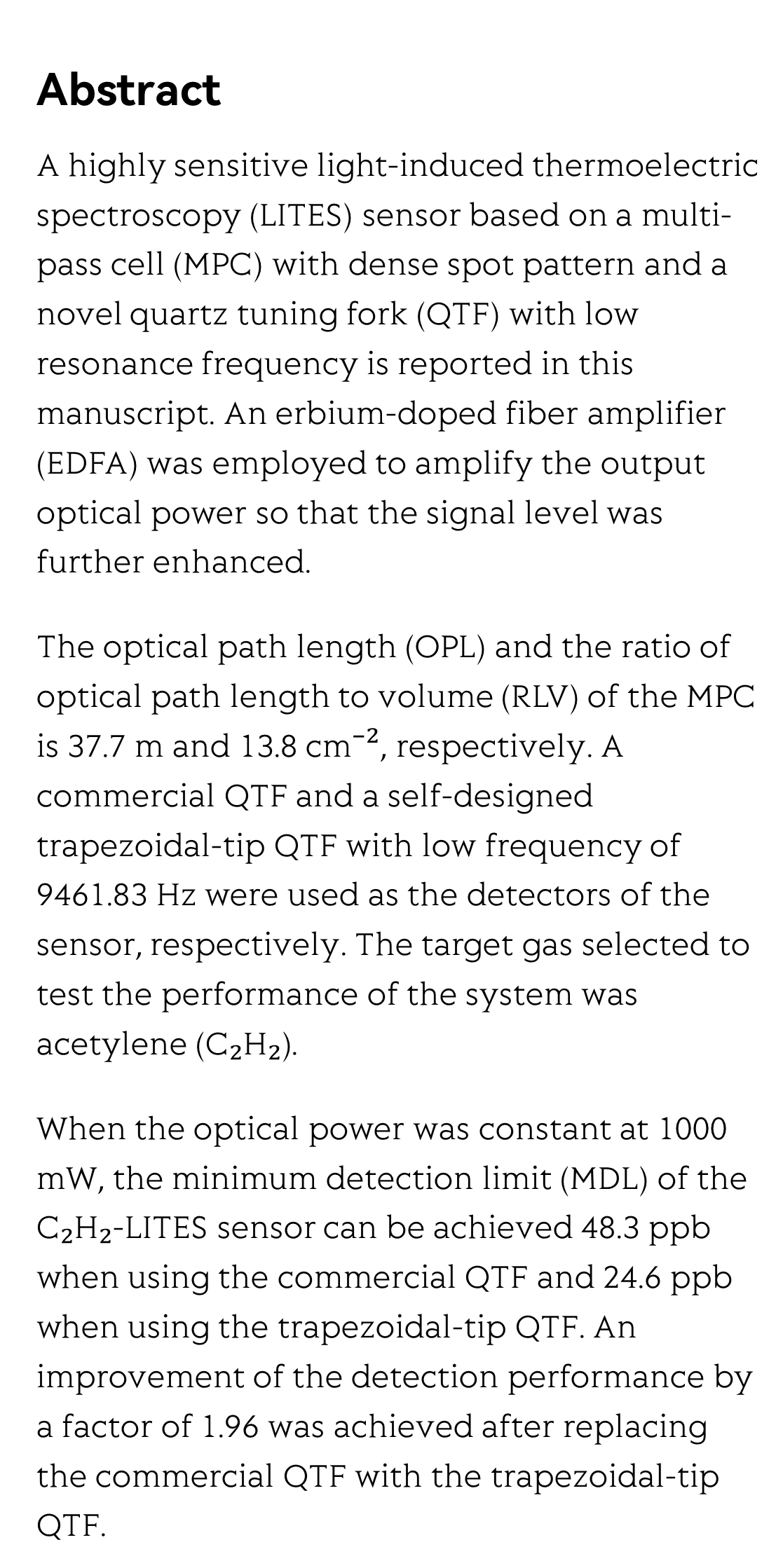

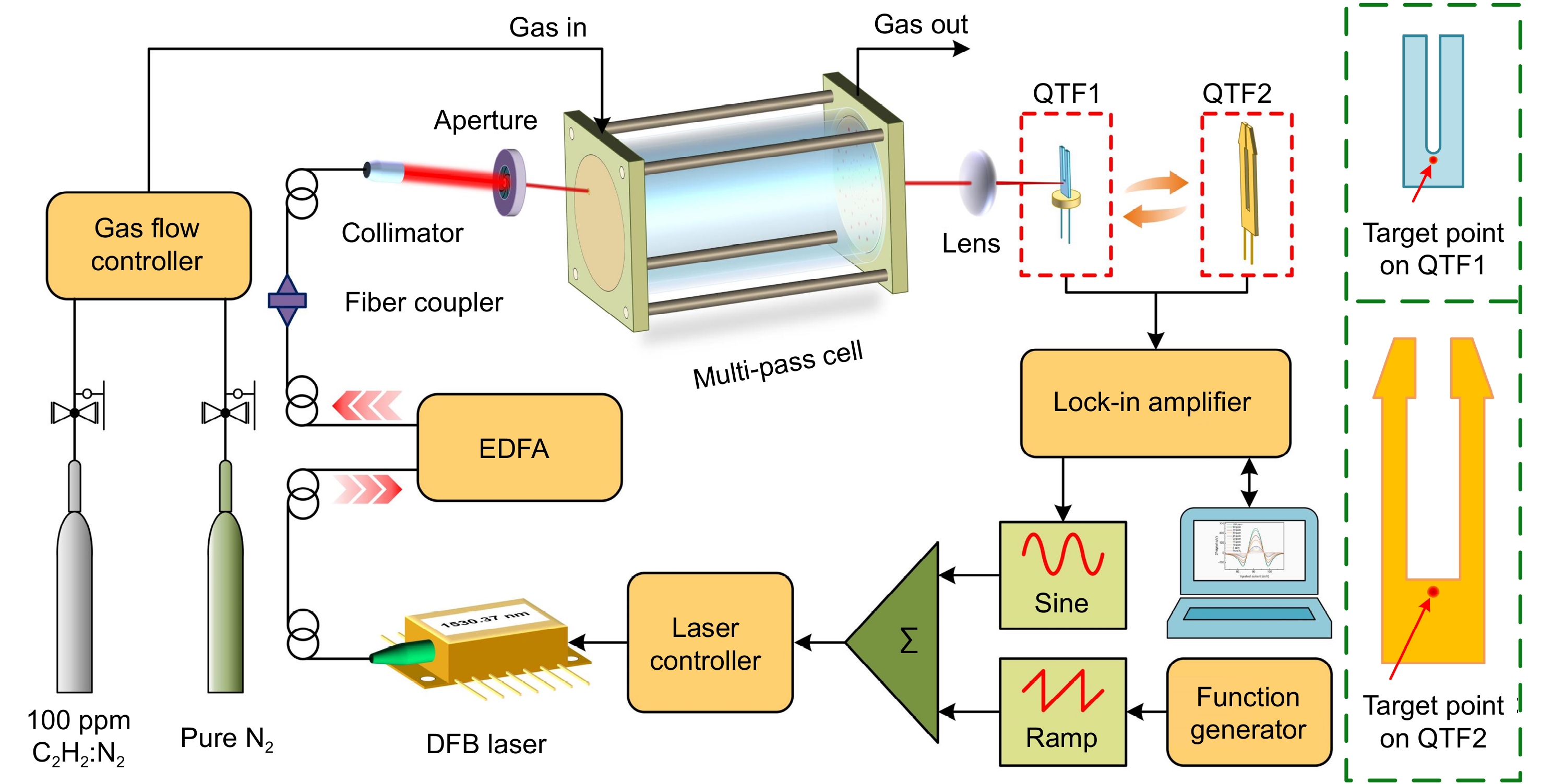

A highly sensitive light-induced thermoelectric spectroscopy (LITES) sensor based on a multi-pass cell (MPC) with dense spot pattern and a novel quartz tuning fork (QTF) with low resonance frequency is reported in this manuscript. An erbium-doped fiber amplifier (EDFA) was employed to amplify the output optical power so that the signal level was further enhanced.
The optical path length (OPL) and the ratio of optical path length to volume (RLV) of the MPC is 37.7 m and 13.8 cm⁻², respectively. A commercial QTF and a self-designed trapezoidal-tip QTF with low frequency of 9461.83 Hz were used as the detectors of the sensor, respectively. The target gas selected to test the performance of the system was acetylene (C₂H₂).
When the optical power was constant at 1000 mW, the minimum detection limit (MDL) of the C₂H₂-LITES sensor can be achieved 48.3 ppb when using the commercial QTF and 24.6 ppb when using the trapezoidal-tip QTF. An improvement of the detection performance by a factor of 1.96 was achieved after replacing the commercial QTF with the trapezoidal-tip QTF.
