Data network traffic analysis and optimization strategy of real-time power grid dynamic monitoring system for wide-frequency measurements

宽频测量实时电网动态监测系统数据网络流量分析与优化策略
広帯域測定のためのリアルタイム電力網動的監視システムのデータネットワークトラフィック分析と最適化戦略
광역 측정을 위한 실시간 전력망 동적 모니터링 시스템의 데이터 네트워크 트래픽 분석 및 최적화 전략
Análisis de tráfico de red de datos y estrategia de optimización del sistema de monitoreo dinámico de red eléctrica en tiempo real para mediciones de frecuencia amplia
Analyse du trafic du réseau de données et stratégie d'optimisation du système de surveillance dynamique du réseau électrique en temps réel pour les mesures à large fréquence
Анализ трафика сети передачи данных и стратегия оптимизации системы динамического мониторинга энергосистемы в режиме реального времени для широкочастотных измерений

Jinsong Li 李劲松 ¹ ², Hao Liu 刘灏 ¹, Wenzhuo Li 李文琢 ², Tianshu Bi 毕天姝 ¹, Mingyang Zhao 赵铭洋 ²

¹ State Key Lab of Alternate Electric Power System with Renewable Energy Sources (North China Electric Power University), Beijing 102206, P. R. China
中国北京新能源电力系统国家重点实验室（华北电力大学）
² Beijing Key Laboratory of Research and System Evaluation of Power Dispatching Automation Technology (China Electric Power Research Institute), Beijing 100192, P. R. China
中国北京电力调度自动化技术研究与系统评价北京市重点实验室（中国电力科学研究院有限公司）

https://doi.org/10.1016/j.gloei.2022.04.011

https://www.gei-journal.com/en/journalsDetailsEn/20220520/1527552181186727936.html

Global Energy Interconnection, 25 April 2022

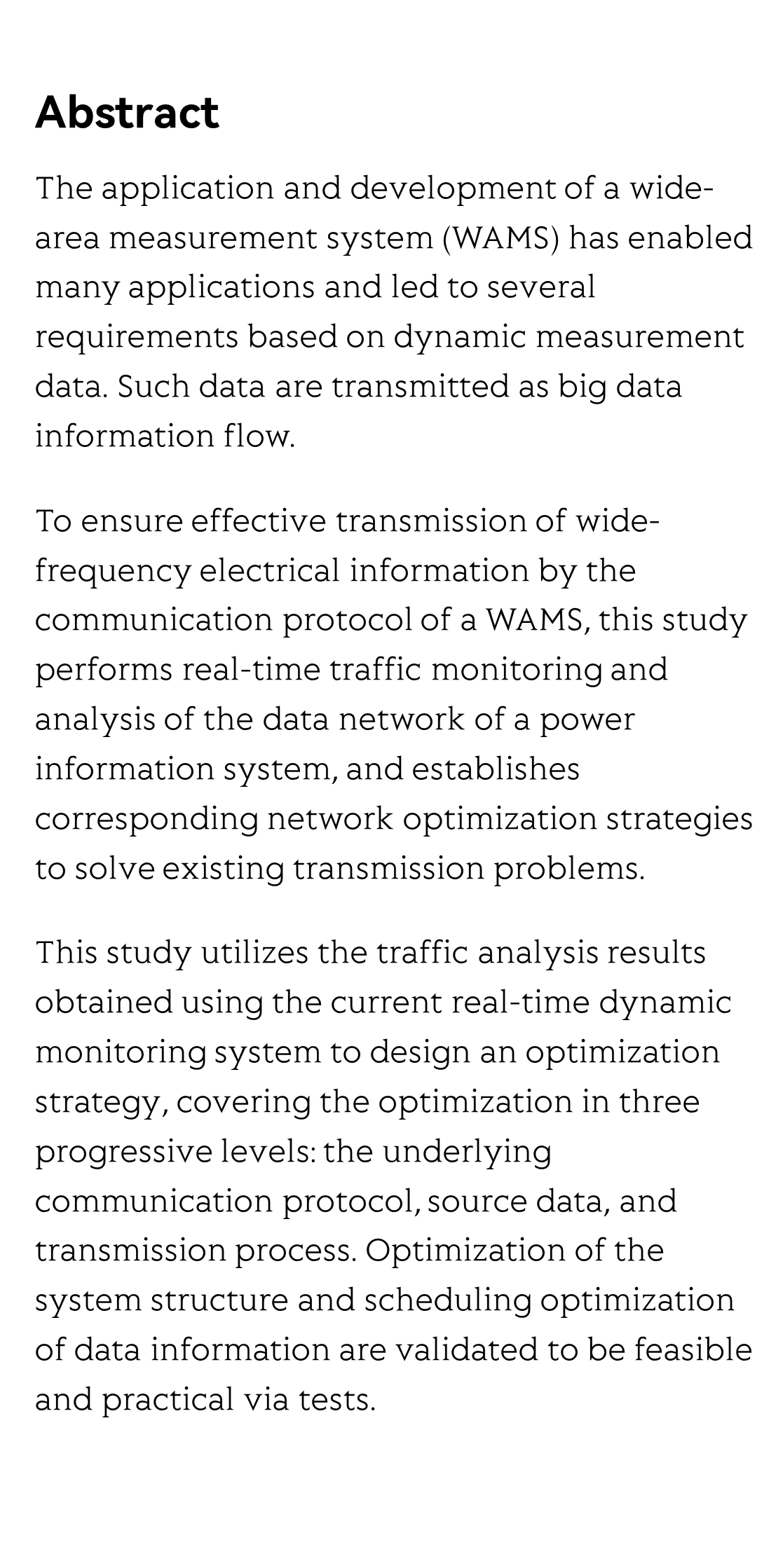

Abstract

The application and development of a wide-area measurement system (WAMS) has enabled many applications and led to several requirements based on dynamic measurement data. Such data are transmitted as big data information flow.

To ensure effective transmission of wide-frequency electrical information by the communication protocol of a WAMS, this study performs real-time traffic monitoring and analysis of the data network of a power information system, and establishes corresponding network optimization strategies to solve existing transmission problems.

This study utilizes the traffic analysis results obtained using the current real-time dynamic monitoring system to design an optimization strategy, covering the optimization in three progressive levels: the underlying communication protocol, source data, and transmission process. Optimization of the system structure and scheduling optimization of data information are validated to be feasible and practical via tests.
