Numerical simulation of nanosecond laser ablation and plasma characteristics considering a real gas equation of state
考虑真实气体状态方程的纳秒激光烧蚀和等离子体特性的数值模拟
実在気体の状態方程式を考慮したナノ秒レーザーアブレーションとプラズマ特性の数値シミュレーション
실제 기체 상태 방정식을 고려한 나노초 laser ablation 및 플라즈마 특성의 수치 시뮬레이션
Simulación numérica de ablación láser de nanosegundos y características del plasma considerando una ecuación de estado de gas real
Simulation numérique de l'ablation laser nanoseconde et des caractéristiques du plasma en considérant une équation d'état d'un gaz réel
Численное моделирование характеристик наносекундной лазерной абляции и плазмы с учетом уравнения состояния реального газа
Qiang LIU 刘强 ¹, Qi MIN 敏琦 ¹ ², Maogen SU 苏茂根 ¹ ², Xingbang LIU 刘兴邦 ¹, Shiquan CAO 曹世权 ¹ ², Duixiong SUN 孙对兄 ¹ ², Chenzhong DONG 董晨钟 ¹ ², Yanbiao FU 符彦飙 ¹ ²
¹ Key Laboratory of Atomic and Molecular Physics and Functional Material of Gansu Province, College of Physics and Electronic Engineering, Northwest Normal University, Lanzhou 730070, People’s Republic of China
中国 兰州 西北师范大学物理与电子工程学院 甘肃省原子分子物理与功能材料重点实验室
² Joint Laboratory of Atomic and Molecular Physics, Northwest Normal University and Institute of Modern Physics of Chinese Academy of Sciences, Lanzhou 730070, People's Republic of China
中国 兰州 西北师范大学 中国科学院近代物理研究所 极端环境原子分子物理联合实验室

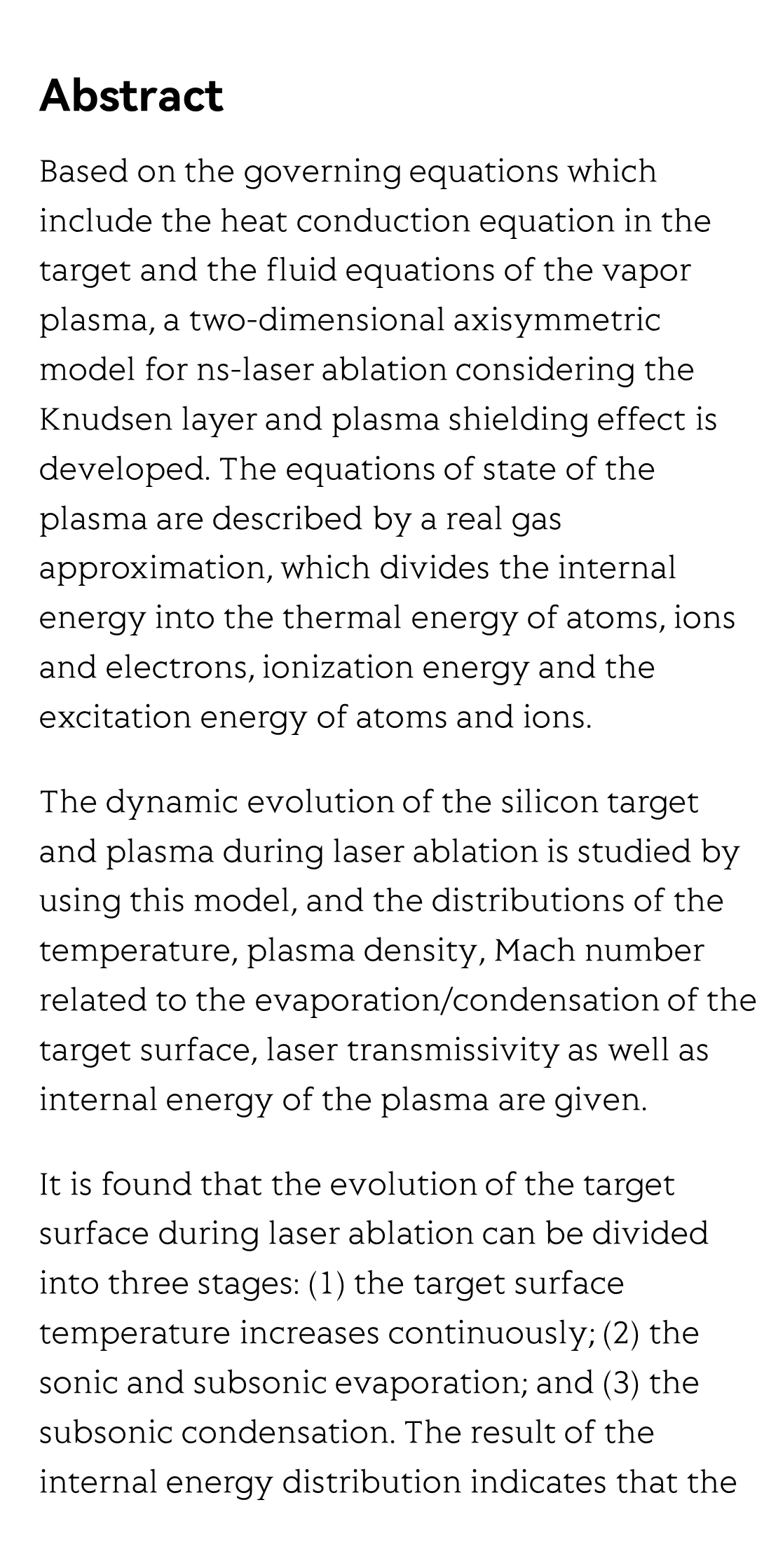

Based on the governing equations which include the heat conduction equation in the target and the fluid equations of the vapor plasma, a two-dimensional axisymmetric model for ns-laser ablation considering the Knudsen layer and plasma shielding effect is developed. The equations of state of the plasma are described by a real gas approximation, which divides the internal energy into the thermal energy of atoms, ions and electrons, ionization energy and the excitation energy of atoms and ions.
The dynamic evolution of the silicon target and plasma during laser ablation is studied by using this model, and the distributions of the temperature, plasma density, Mach number related to the evaporation/condensation of the target surface, laser transmissivity as well as internal energy of the plasma are given.

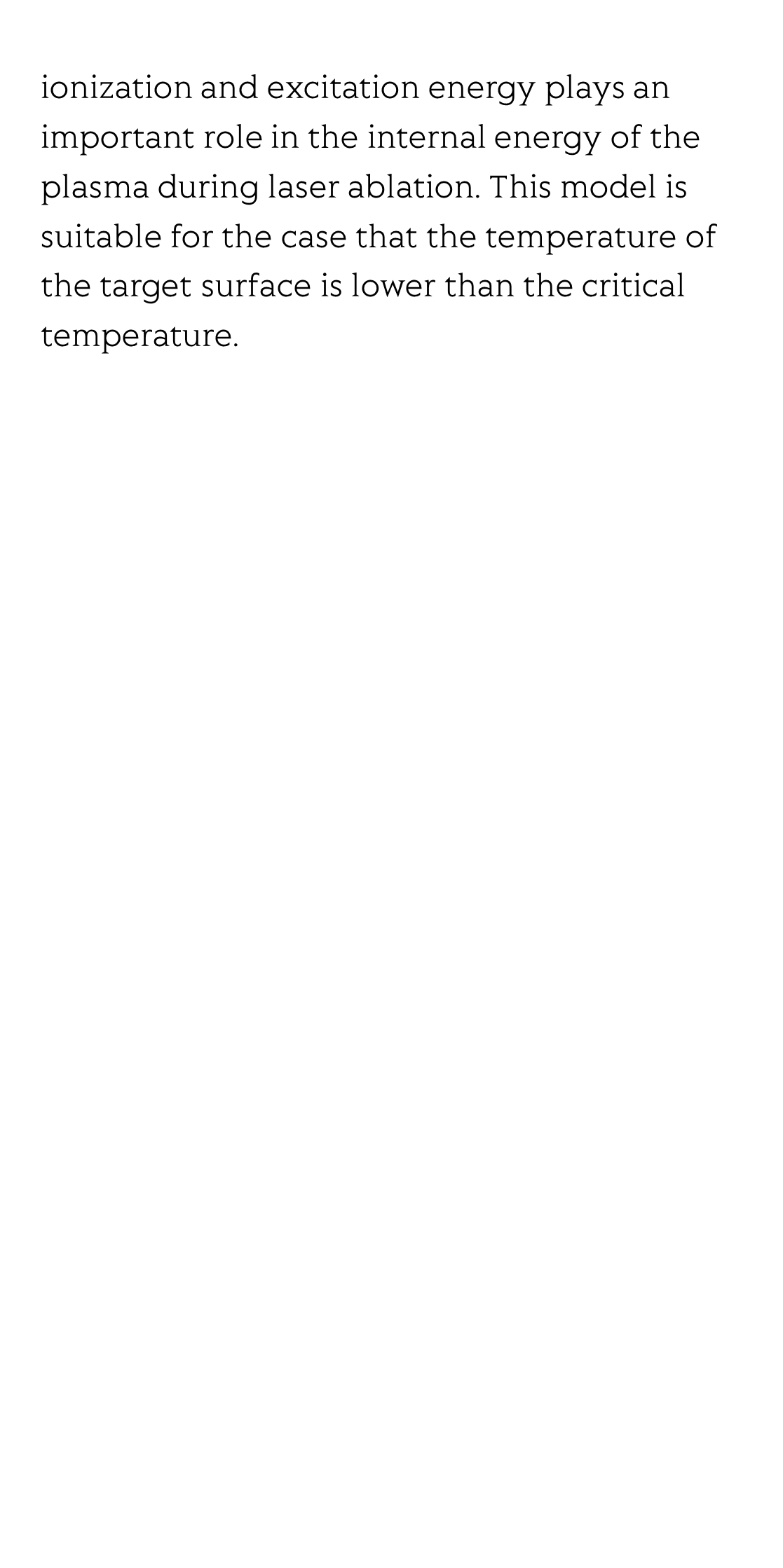

It is found that the evolution of the target surface during laser ablation can be divided into three stages: (1) the target surface temperature increases continuously; (2) the sonic and subsonic evaporation; and (3) the subsonic condensation. The result of the internal energy distribution indicates that the ionization and excitation energy plays an important role in the internal energy of the plasma during laser ablation. This model is suitable for the case that the temperature of the target surface is lower than the critical temperature.
