31.38 Gb/s GaN-based LED array visible light communication system enhanced with V-pit and sidewall quantum well structure
采用V型坑和侧壁量子阱结构增强的31.38Gb/s GaN基LED阵列可见光通信系统
V型ピットと側壁量子井戸構造を強化した31.38 Gb／sGaNベースLEDアレイ可視光通信システム
V-구덩이 및 측벽 양자 함정 구조로 향상된 31.38Gb/s GaN 기반 LED 어레이 가시광선 통신 시스템
Sistema de comunicación de luz visible de matriz LED basada en 31.38gb / s Gan mejorado con estructura de pozo cuántico en forma de V y pared lateral
Système de communication par lumière visible à matrice LED à base de Gan de 31,38 GB / s renforcé par une structure à puits quantiques en V et à parois latérales
Система связи с видимым светом на основе светодиодной решетки на основе 31,38 Гбит / с с улучшенной структурой V - образной ямы и квантовой ловушки боковой стенки
Zengyi Xu 徐增熠 ¹ ⁴, Wenqing Niu 牛文清 ¹, Yu Liu 柳裕 ², Xianhao Lin 林显浩 ¹, Jifan Cai 蔡济帆 ¹, Jianyang Shi 施剑阳 ¹ ³, Xiaolan Wang 王小兰 ², Guangxu Wang 王光绪 ², Jianli Zhang 张建立 ², Fengyi Jiang 江风益 ², Zhixue He 贺志学 ⁴, Shaohua Yu 余少华 ⁴, Chao Shen 沈超 ¹, Junwen Zhang 张俊文 ¹, Nan Chi 迟楠 ¹ ³
¹ Key Laboratory for the Information Science of Electromagnetic Waves (MoE), Department of Communication Science and Engineering, Fudan University, Shanghai 200433, China
中国 上海 复旦大学电磁波信息科学教育部重点实验室
² National Institute of LED on Silicon Substrate, Nanchang University, Nanchang 330096, China
中国 南昌 南昌大学国家硅基LED工程技术研究中心
³ Shanghai Engineering Research Center of Low-Earth-Orbit Satellite Communication and Applications, and Shanghai Collaborative Innovation Center of Low-Earth-Orbit Satellite Communication Technology, Shanghai 200433, China
中国 上海 上海低轨卫星通信与应用工程技术研究中心 上海低轨卫星通信技术协同创新中心
⁴ Peng Cheng Laboratory, Shenzhen 518055, China
中国 深圳 鹏城实验室

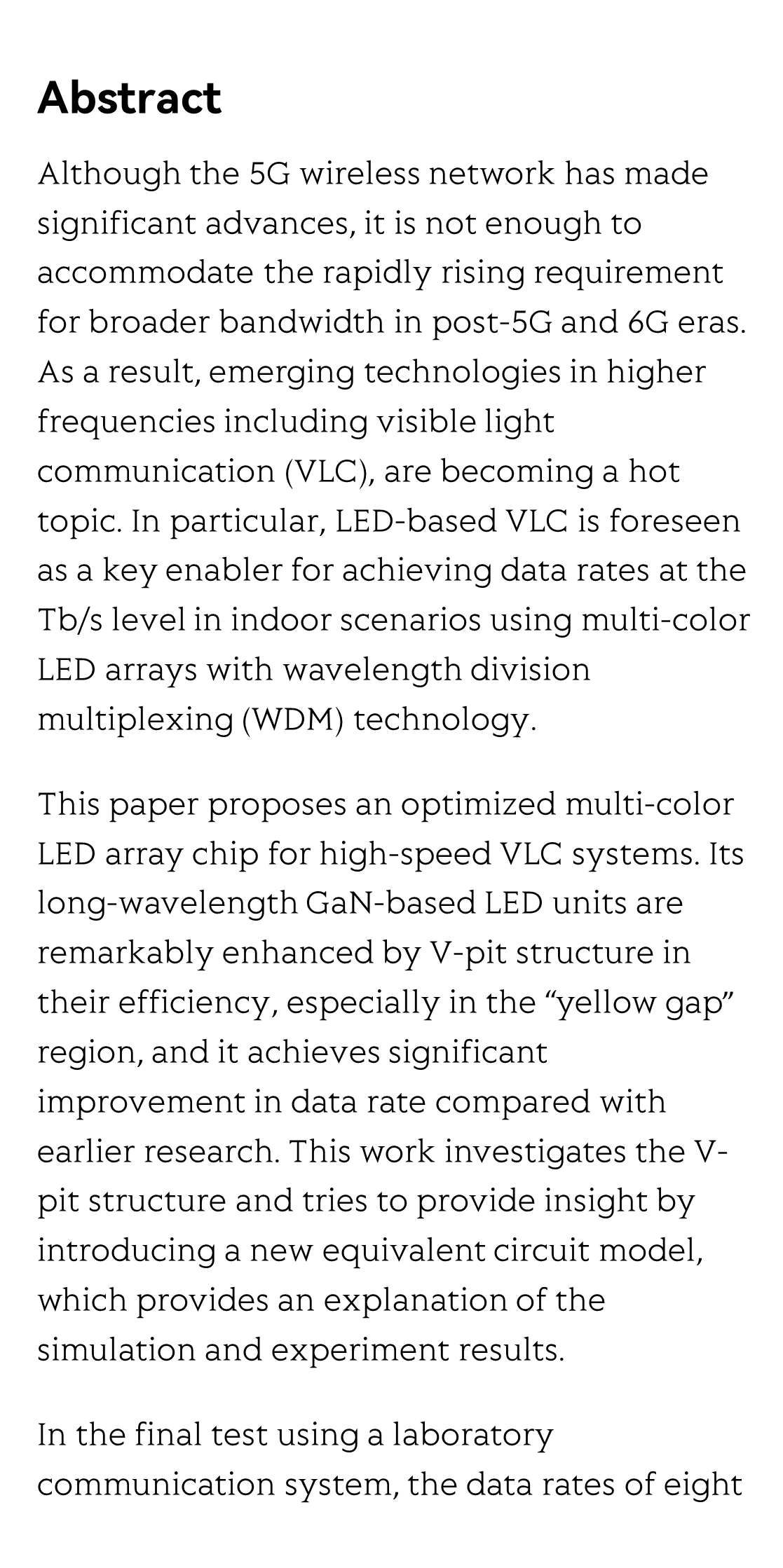

Although the 5G wireless network has made significant advances, it is not enough to accommodate the rapidly rising requirement for broader bandwidth in post-5G and 6G eras. As a result, emerging technologies in higher frequencies including visible light communication (VLC), are becoming a hot topic. In particular, LED-based VLC is foreseen as a key enabler for achieving data rates at the Tb/s level in indoor scenarios using multi-color LED arrays with wavelength division multiplexing (WDM) technology.

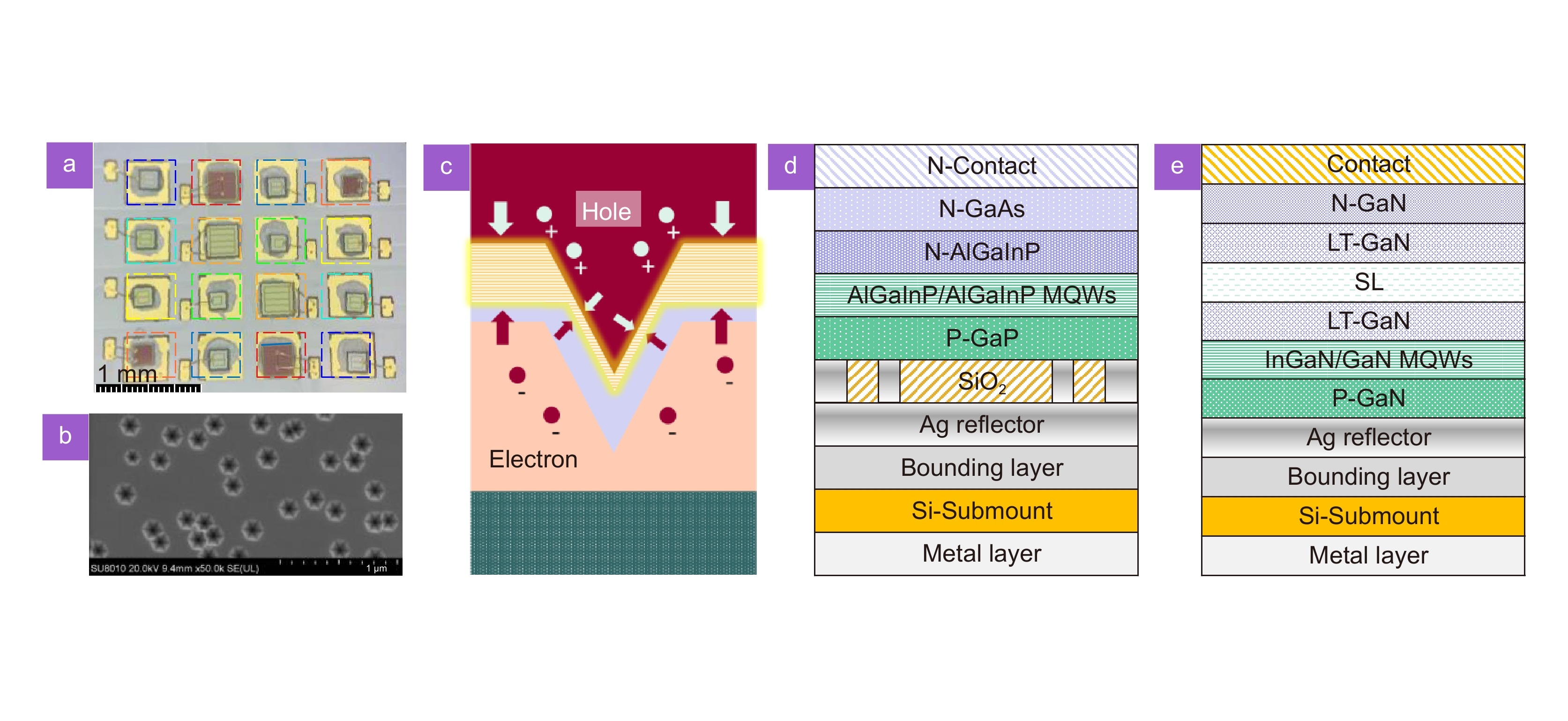

This paper proposes an optimized multi-color LED array chip for high-speed VLC systems. Its long-wavelength GaN-based LED units are remarkably enhanced by V-pit structure in their efficiency, especially in the “yellow gap” region, and it achieves significant improvement in data rate compared with earlier research. This work investigates the V-pit structure and tries to provide insight by introducing a new equivalent circuit model, which provides an explanation of the simulation and experiment results.

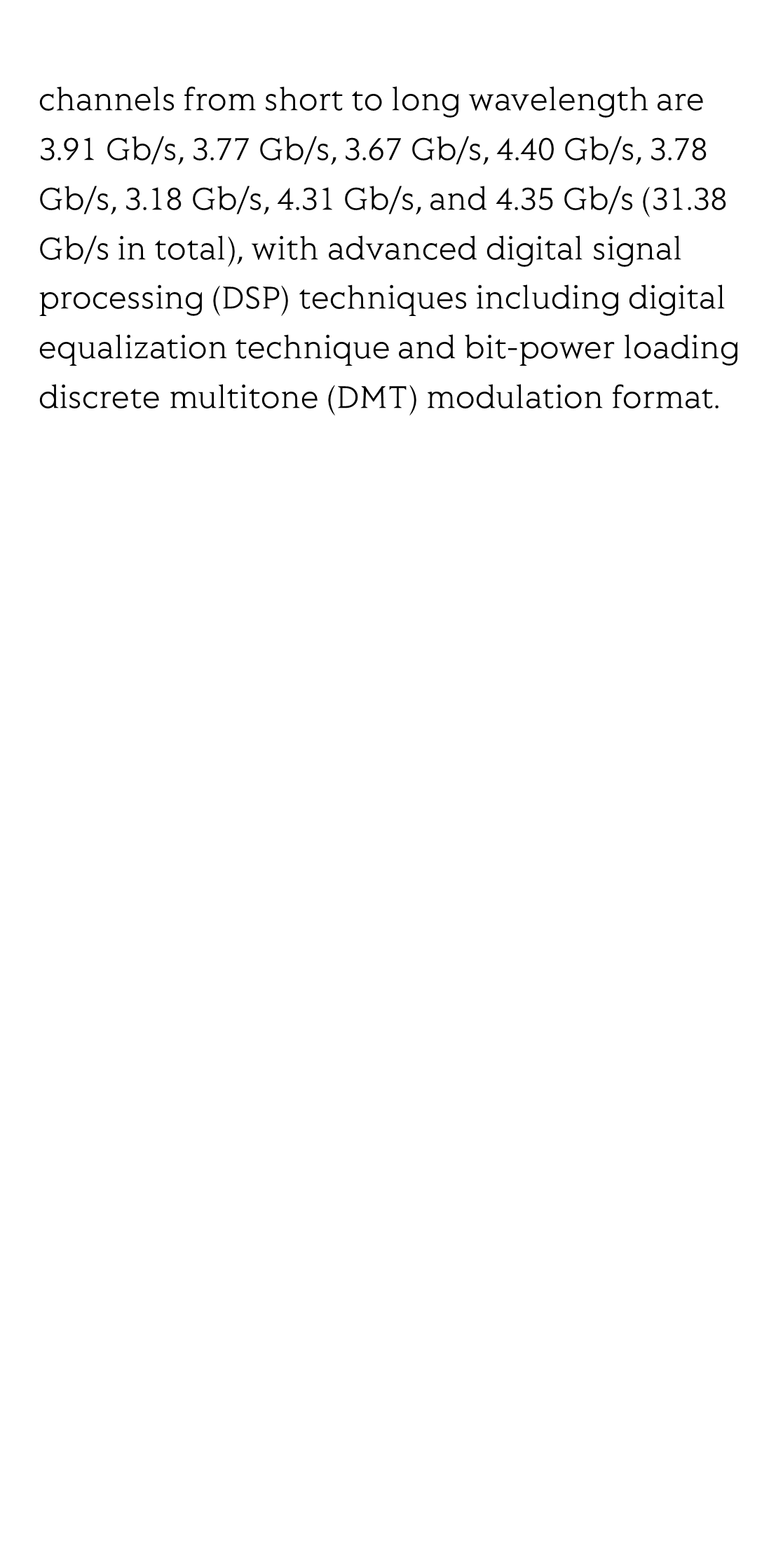

In the final test using a laboratory communication system, the data rates of eight channels from short to long wavelength are 3.91 Gb/s, 3.77 Gb/s, 3.67 Gb/s, 4.40 Gb/s, 3.78 Gb/s, 3.18 Gb/s, 4.31 Gb/s, and 4.35 Gb/s (31.38 Gb/s in total), with advanced digital signal processing (DSP) techniques including digital equalization technique and bit-power loading discrete multitone (DMT) modulation format.
