Hot Paper - Phase matching sampling algorithm for sampling rate reduction in time division multiplexing optical fiber sensor system

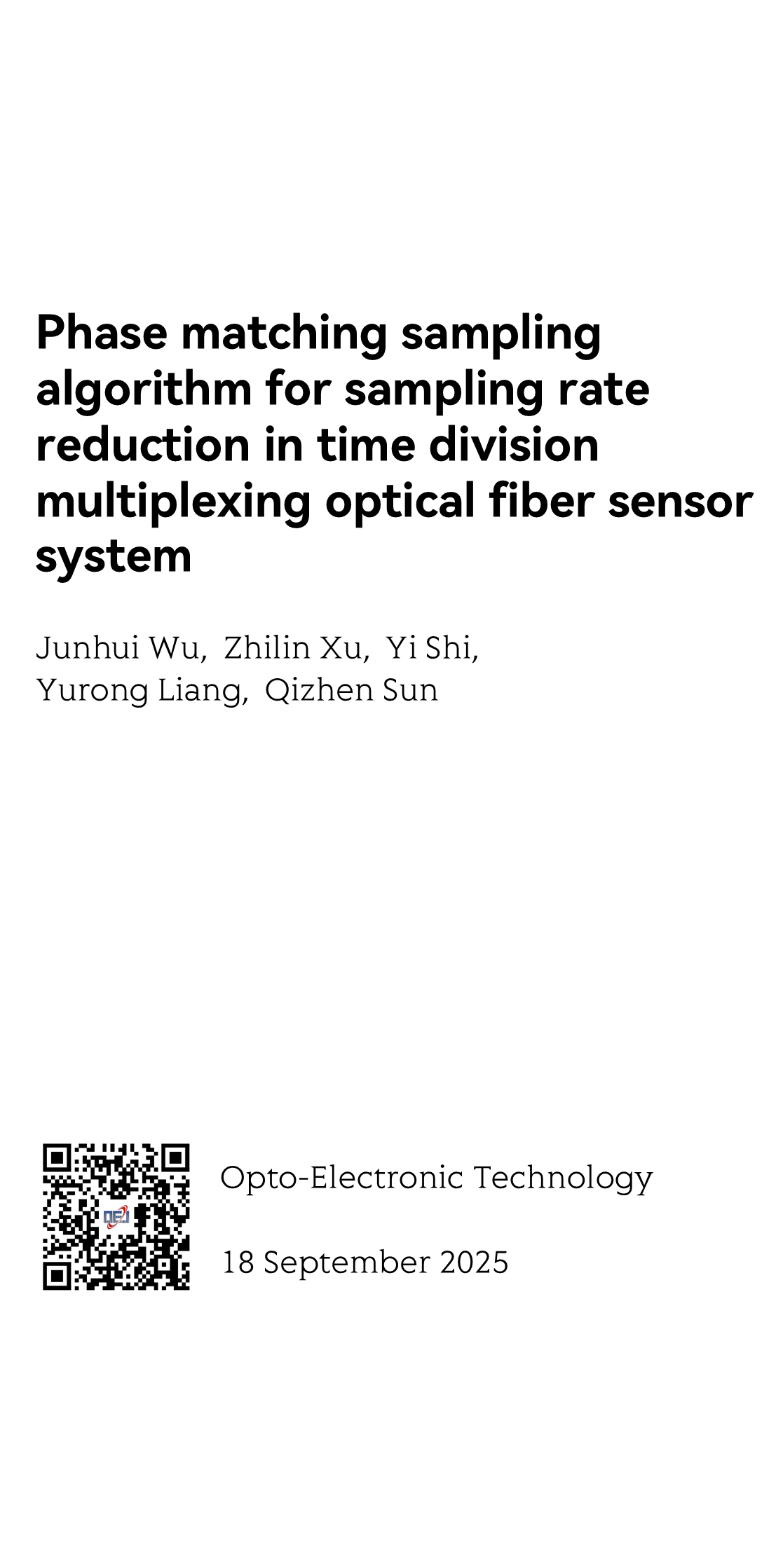

Phase matching sampling algorithm for sampling rate reduction in time division multiplexing optical fiber sensor system

时分复用光纤传感器系统中用于降低采样率的相位匹配采样算法
時間分割多重化光ファイバセンサシステムにおけるサンプリングレート低減のためのフェーズマッチングサンプリングアルゴリズム
시간 분할 다중화 광섬유 센서 시스템에서 샘플링 속도 감소를 위한 위상 정합 샘플링 알고리즘
Algoritmo de muestreo de coincidencia de fase para la reducción de la tasa de muestreo en sistemas de sensores de fibra óptica multiplexados por división de tiempo
Algorithme d'échantillonnage par appariement de phase pour la réduction du taux d'échantillonnage dans les systèmes de capteurs à fibre optique à multiplexage temporel
Алгоритм сопряжения фаз при выборке для снижения частоты дискретизации в системе оптоволоконных датчиков с временным разделением каналов

Junhui Wu 吴俊辉 ¹, Zhilin Xu 徐志林 ¹, Yi Shi 石易 ¹, Yurong Liang 梁浴榕 ¹, Qizhen Sun 孙琪真 ²

¹ National Gravitation Laboratory, MOE Key Laboratory of Fundamental Physical Quantities Measurement, and School of Physics, Huazhong University of Science and Technology, Wuhan 430074, China
中国武汉华中科技大学物理学院基本物理量测量教育部重点实验室国家精密重力测量科学中心
² National Engineering Research Center for Next Generation Internet Access System (NGIA), School of Optical and Electronic Information, Huazhong University of Science and Technology, Wuhan 430074, China
中国武汉华中科技大学光学与电子信息学院下一代互联网接入系统国家工程研究中心（NGIA）

https://doi.org/10.29026/oet.2025.250006

https://www.oejournal.org/oet/article/doi/10.29026/oet.2025.250006

Opto-Electronic Technology, 18 September 2025

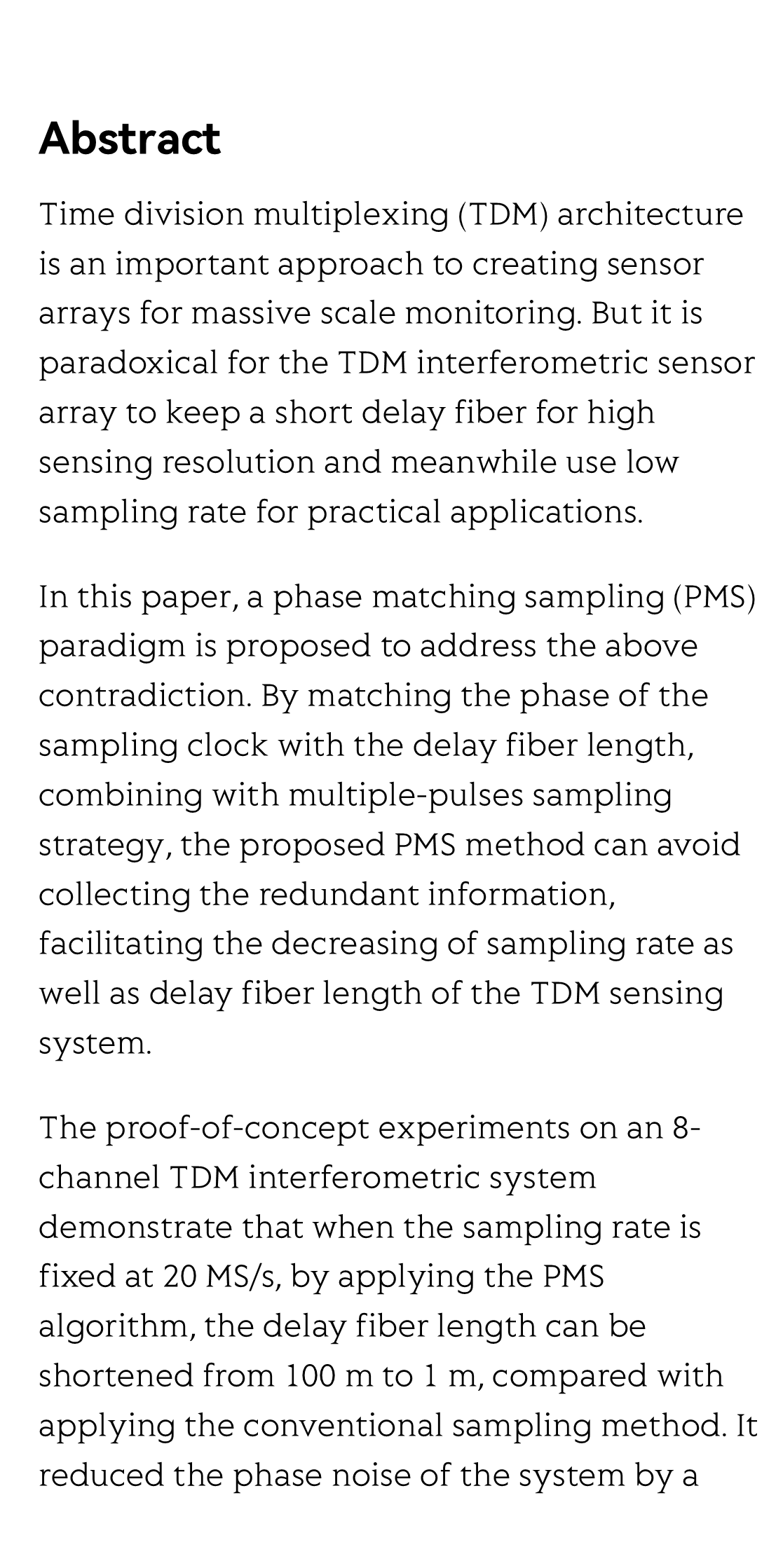

Abstract

Time division multiplexing (TDM) architecture is an important approach to creating sensor arrays for massive scale monitoring. But it is paradoxical for the TDM interferometric sensor array to keep a short delay fiber for high sensing resolution and meanwhile use low sampling rate for practical applications.

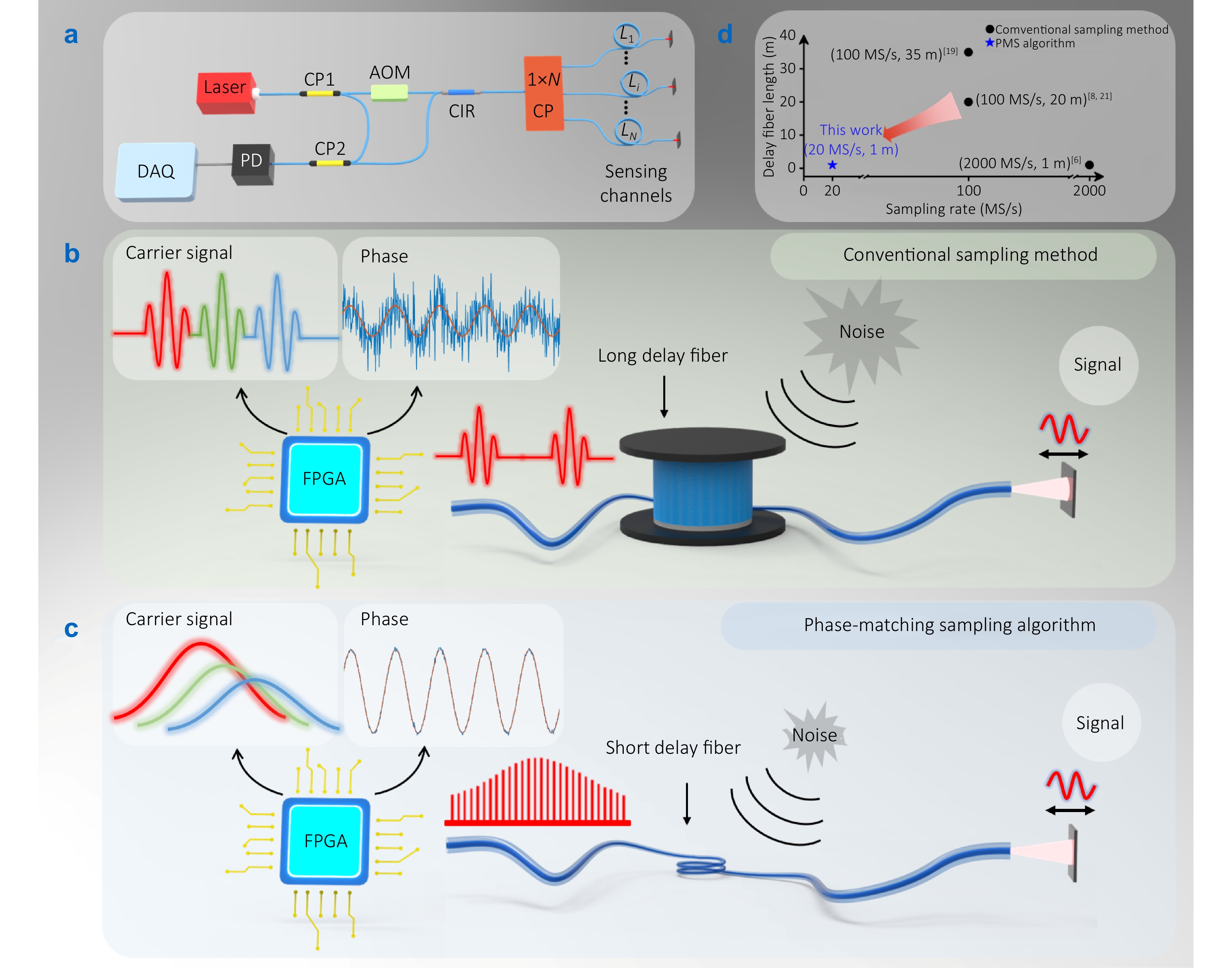

In this paper, a phase matching sampling (PMS) paradigm is proposed to address the above contradiction. By matching the phase of the sampling clock with the delay fiber length, combining with multiple-pulses sampling strategy, the proposed PMS method can avoid collecting the redundant information, facilitating the decreasing of sampling rate as well as delay fiber length of the TDM sensing system.

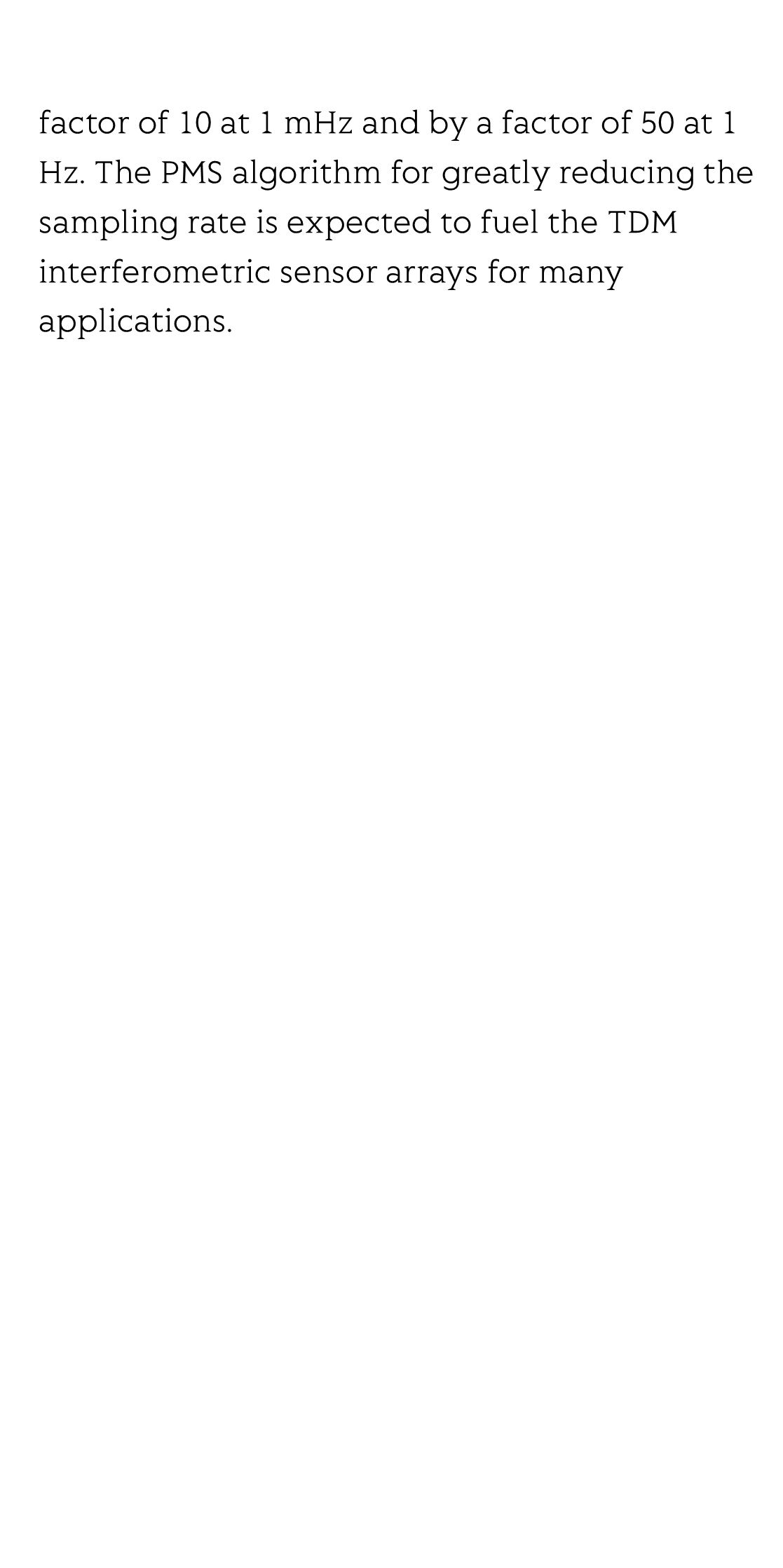

The proof-of-concept experiments on an 8-channel TDM interferometric system demonstrate that when the sampling rate is fixed at 20 MS/s, by applying the PMS algorithm, the delay fiber length can be shortened from 100 m to 1 m, compared with applying the conventional sampling method. It reduced the phase noise of the system by a factor of 10 at 1 mHz and by a factor of 50 at 1 Hz. The PMS algorithm for greatly reducing the sampling rate is expected to fuel the TDM interferometric sensor arrays for many applications.
