A novel approach towards robust construction of physical colors on lithium niobate crystal
铌酸锂晶体物理颜色稳健构造的新方法
ニオブ酸リチウム結晶の物理的色安定構造の新しい方法
니오브산 리튬 결정의 물리적 색깔이 안정적인 구조의 새로운 방법
Un nuevo método para la construcción sólida del color físico del cristal de Niobato de litio
Nouvelle méthode de construction robuste des couleurs physiques des cristaux de Niobate de lithium
Новый метод построения кристаллов ниобата лития
¹ Institute of Modern Optics, Nankai University, Tianjin 300350, China
中国 天津 南开大学现代光学研究所
² Hangzhou Institute of Technology, Xidian University, Hangzhou 311231, China
中国 杭州 西安电子科技大学杭州研究院
³ School of Physics, State Key Laboratory of Crystal Materials, Shandong University, Jinan 250100, China
中国 济南 山东大学物理学院 晶体材料国家重点实验室
⁴ Helmholtz-Zentrum Dresden-Rossendorf, Institute of Ion Beam Physics and Materials Research, Dresden 01328, Germany
⁵ National Laboratory of Solid State Microstructures, Nanjing University, Nanjing 210093, China
中国 南京 南京大学 固体微结构物理国家重点实验室
⁶ State Key Laboratory of Fluid Power and Mechatronic Systems, Zhejiang University, Hangzhou 310027, China
中国 杭州 浙江大学 流体动力基础件与机电系统全国重点实验室
⁷ Tianjin Key Laboratory of Micro-scale Optical Information Science and Technology, Nankai University, Tianjin 300350, China
中国 天津 南开大学 天津市微尺度光学信息技术科学重点实验室

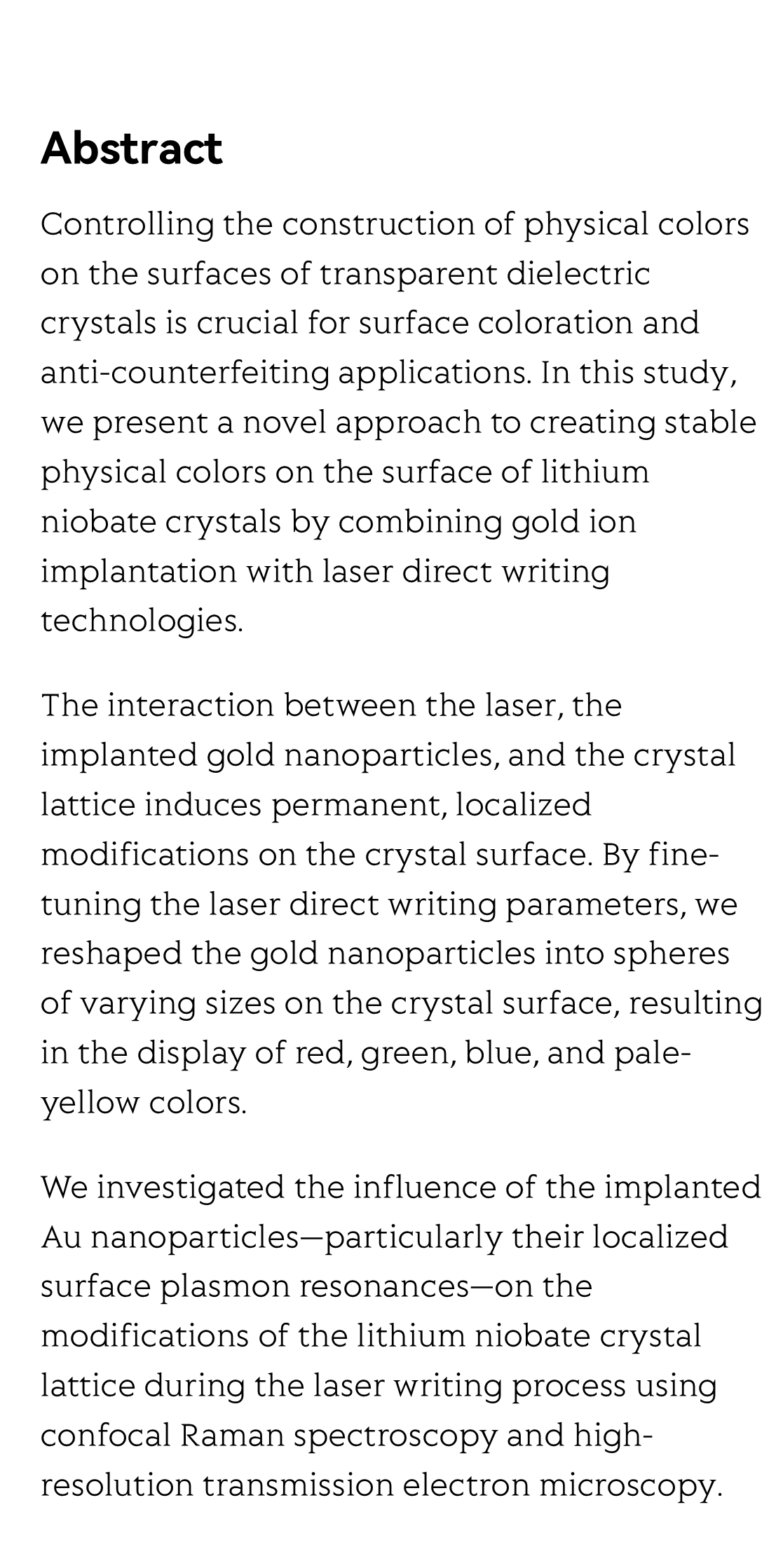

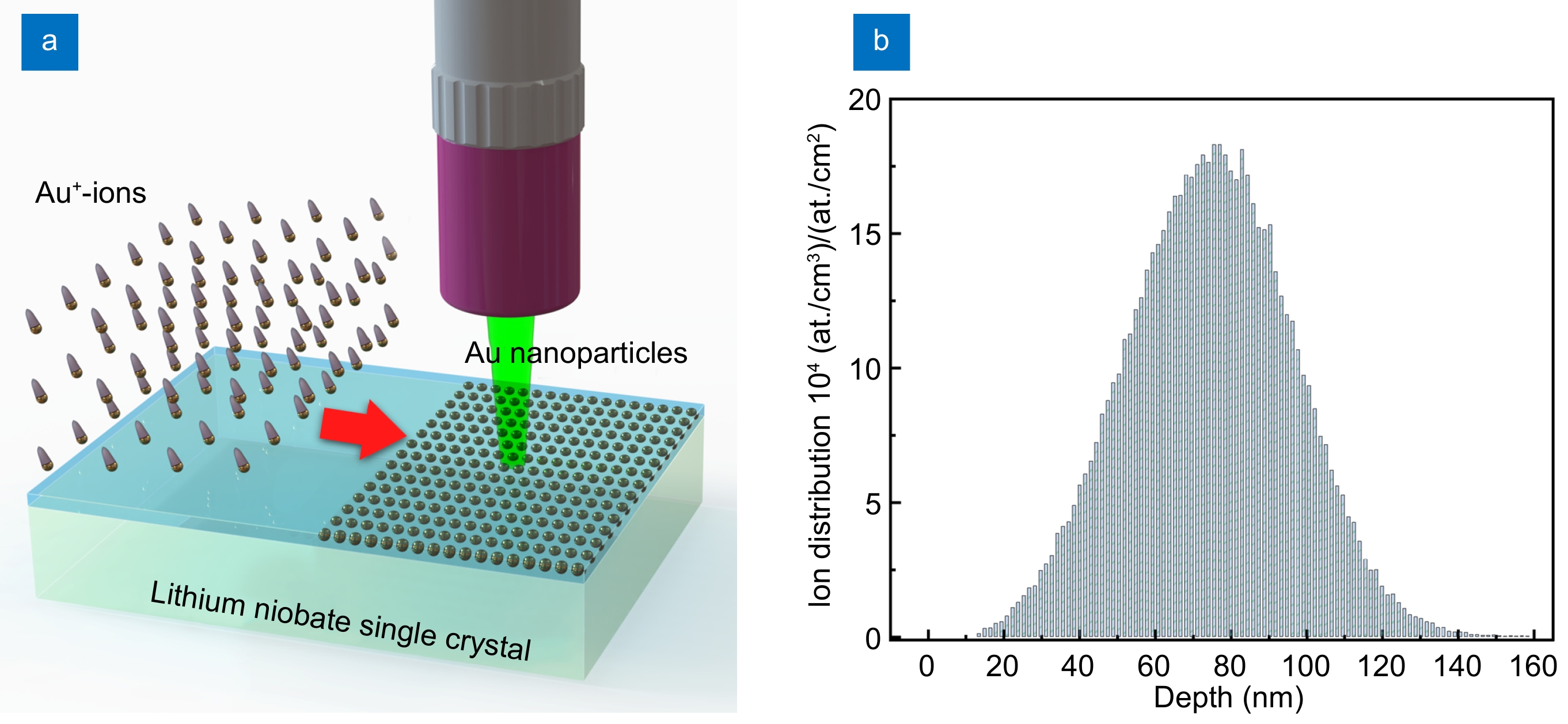

Controlling the construction of physical colors on the surfaces of transparent dielectric crystals is crucial for surface coloration and anti-counterfeiting applications. In this study, we present a novel approach to creating stable physical colors on the surface of lithium niobate crystals by combining gold ion implantation with laser direct writing technologies.
The interaction between the laser, the implanted gold nanoparticles, and the crystal lattice induces permanent, localized modifications on the crystal surface. By fine-tuning the laser direct writing parameters, we reshaped the gold nanoparticles into spheres of varying sizes on the crystal surface, resulting in the display of red, green, blue, and pale-yellow colors.
We investigated the influence of the implanted Au nanoparticles—particularly their localized surface plasmon resonances—on the modifications of the lithium niobate crystal lattice during the laser writing process using confocal Raman spectroscopy and high-resolution transmission electron microscopy.

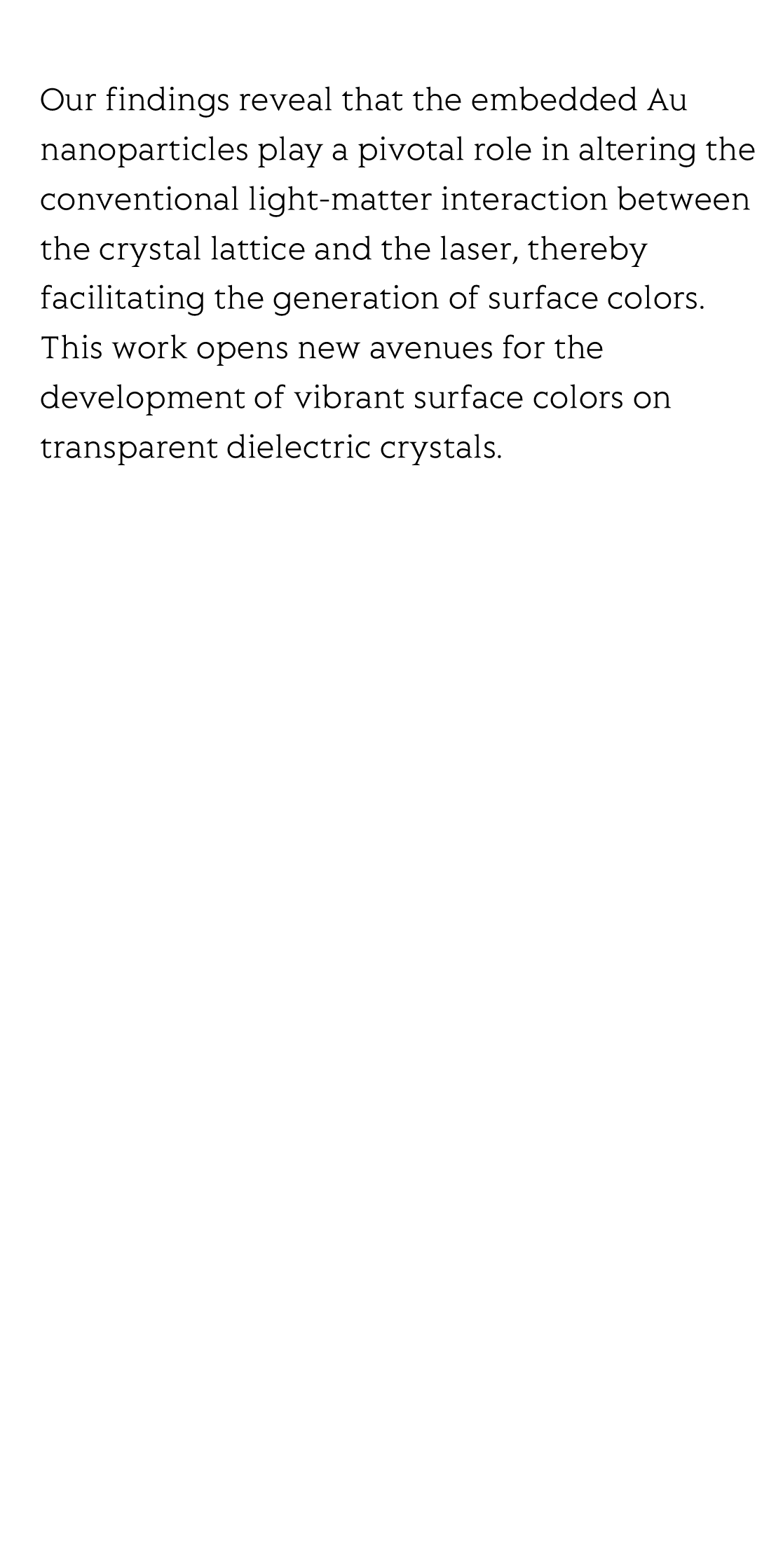

Our findings reveal that the embedded Au nanoparticles play a pivotal role in altering the conventional light-matter interaction between the crystal lattice and the laser, thereby facilitating the generation of surface colors. This work opens new avenues for the development of vibrant surface colors on transparent dielectric crystals.
