High-resolution tumor marker detection based on microwave photonics demodulated dual wavelength fiber laser sensor
基于微波光子解调双波长光纤激光传感器的高分辨率肿瘤标志物检测
マイクロ波フォトニクス復調型二波長ファイバーレーザーセンサーに基づく高解像度腫瘍マーカー検出
마이크로파 광자 복조 이중파장 파이버 레이저 센서를 기반으로 한 고해상도 종양 마커 검출
Detección de marcadores tumorales de alta resolución basada en un sensor láser de fibra de longitud de onda dual demodulado por fotónica de microondas
Détection de marqueurs tumoraux à haute résolution basée sur un capteur laser à fibre à double longueur d'onde démodulé par photonique micro-onde
Высокоточное обнаружение опухолевых маркеров на основе микроволнового фотонного демодулированного двухволнового волоконно-оптического лазерного датчика
Jie Hu 胡杰 ¹, Weihao Lin 林伟浩 ¹, Liyang Shao 邵理阳 ¹, Chenlong Xue ¹, Fang Zhao 赵芳 ¹, Dongrui Xiao ², Yang Ran 冉洋 ³, Yue Meng ⁴, Panpan He ⁵, Zhiguang Yu 余枝广 ⁵, Jinna Chen 陈金娜 ¹, Perry Ping Shum 沈平 ¹
¹ Department of Electronic and Electrical Engineering, Southern University of Science and Technology, Shenzhen 518055, China
中国 深圳 南方科技大学电子与电气工程系
² School of Electrical Information Engineering, Hunan Institute of Technology, Hengyang 421002, China
中国 衡阳 湖南工学院电气与信息工程学院
³ Guangdong Provincial Key Laboratory of Optical Fiber Sensing and Communications, Institute of Photonics Technology, Jinan University, Guangzhou 510632, China
中国 广州 暨南大学光子技术研究院 广东省光纤传感与通信技术重点实验室
⁴ Department of Clinical Laboratory, Guangdong Provincial People’s Hospital, Guangdong Academy of Medical Sciences, Guangzhou 511436, China
中国 广州 广东省医学科学院 广东省人民医院检验科
⁵ Medcaptain Medical Technology Co., Ltd., Shenzhen 518055, China
中国 深圳 深圳麦科田生物医疗技术股份有限公司

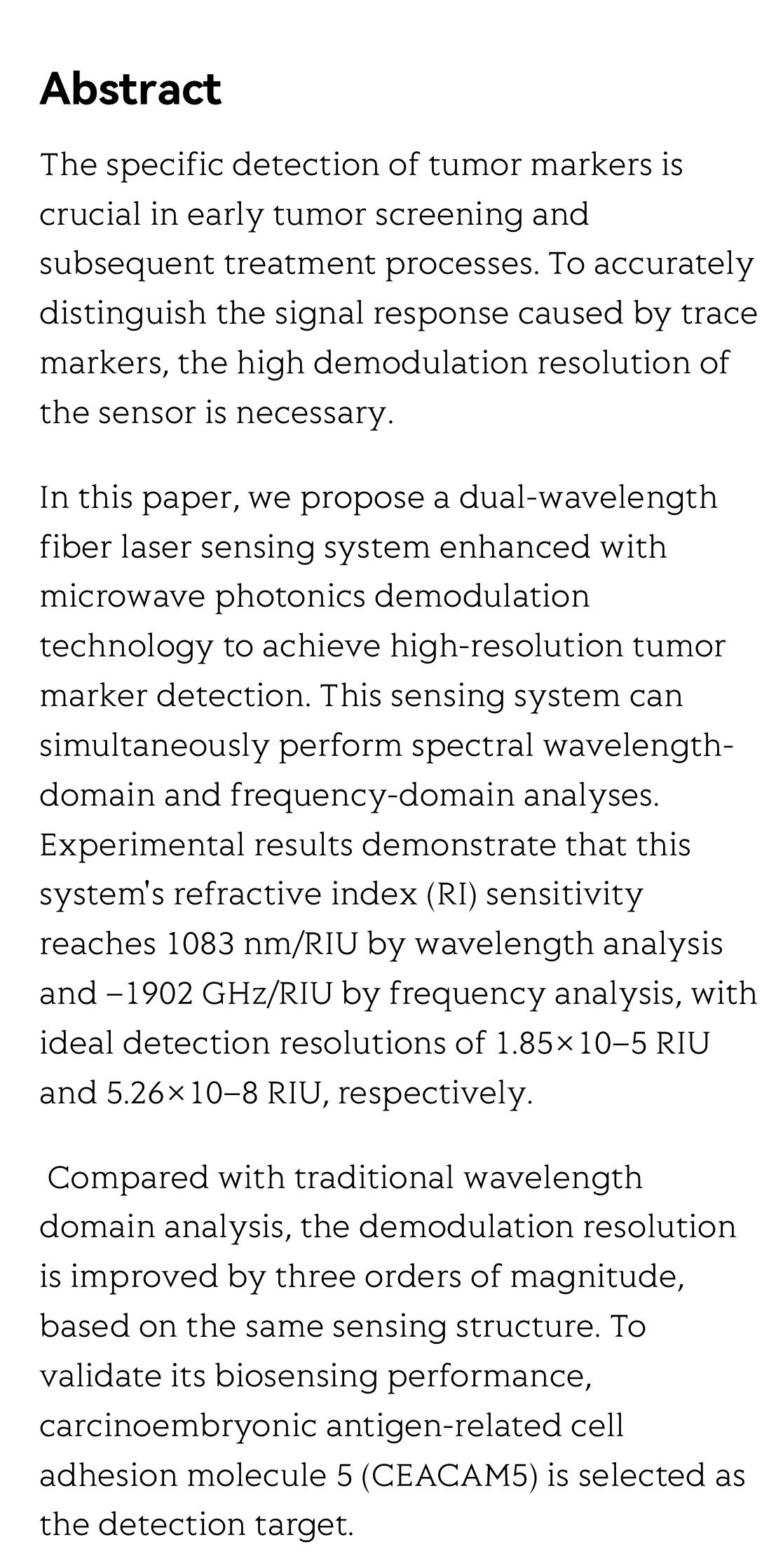

The specific detection of tumor markers is crucial in early tumor screening and subsequent treatment processes. To accurately distinguish the signal response caused by trace markers, the high demodulation resolution of the sensor is necessary.

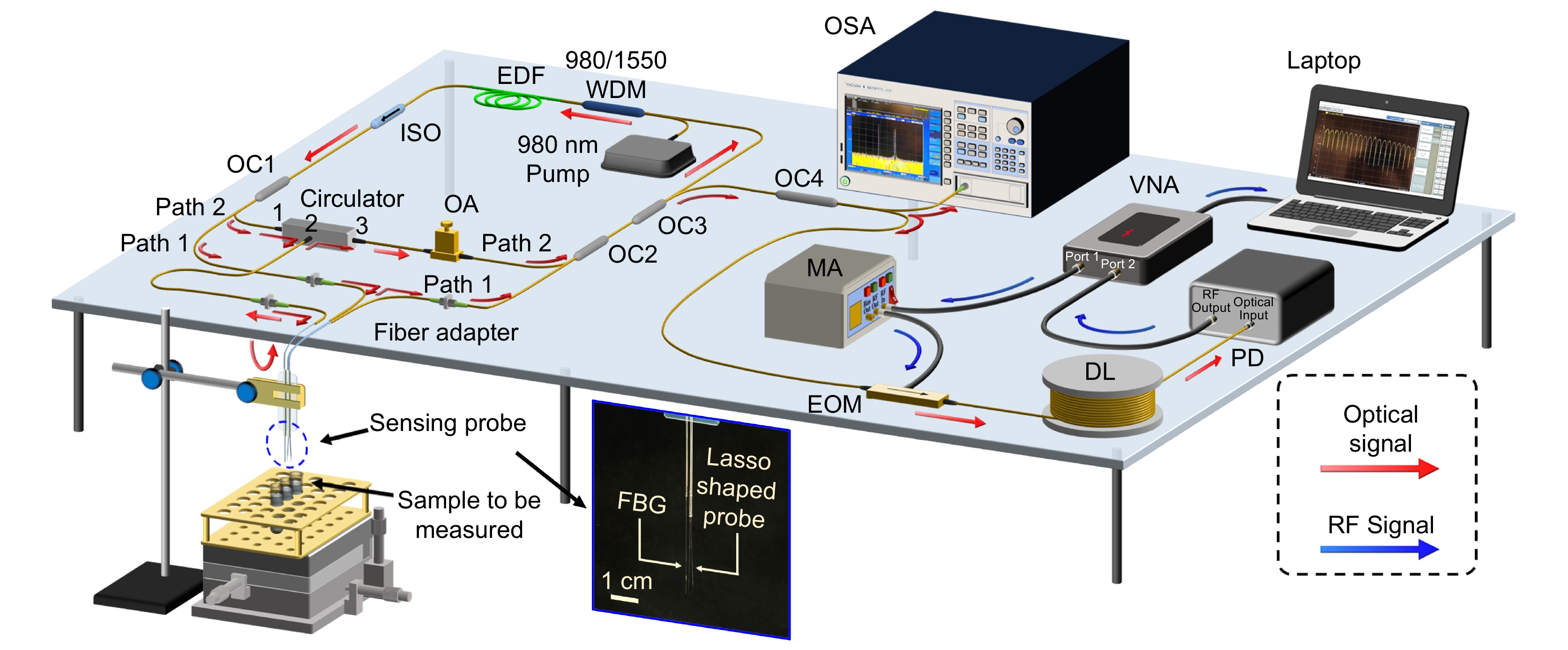

In this paper, we propose a dual-wavelength fiber laser sensing system enhanced with microwave photonics demodulation technology to achieve high-resolution tumor marker detection. This sensing system can simultaneously perform spectral wavelength-domain and frequency-domain analyses. Experimental results demonstrate that this system's refractive index (RI) sensitivity reaches 1083 nm/RIU by wavelength analysis and –1902 GHz/RIU by frequency analysis, with ideal detection resolutions of 1.85×10–5 RIU and 5.26×10–8 RIU, respectively.
Compared with traditional wavelength domain analysis, the demodulation resolution is improved by three orders of magnitude, based on the same sensing structure. To validate its biosensing performance, carcinoembryonic antigen-related cell adhesion molecule 5 (CEACAM5) is selected as the detection target.

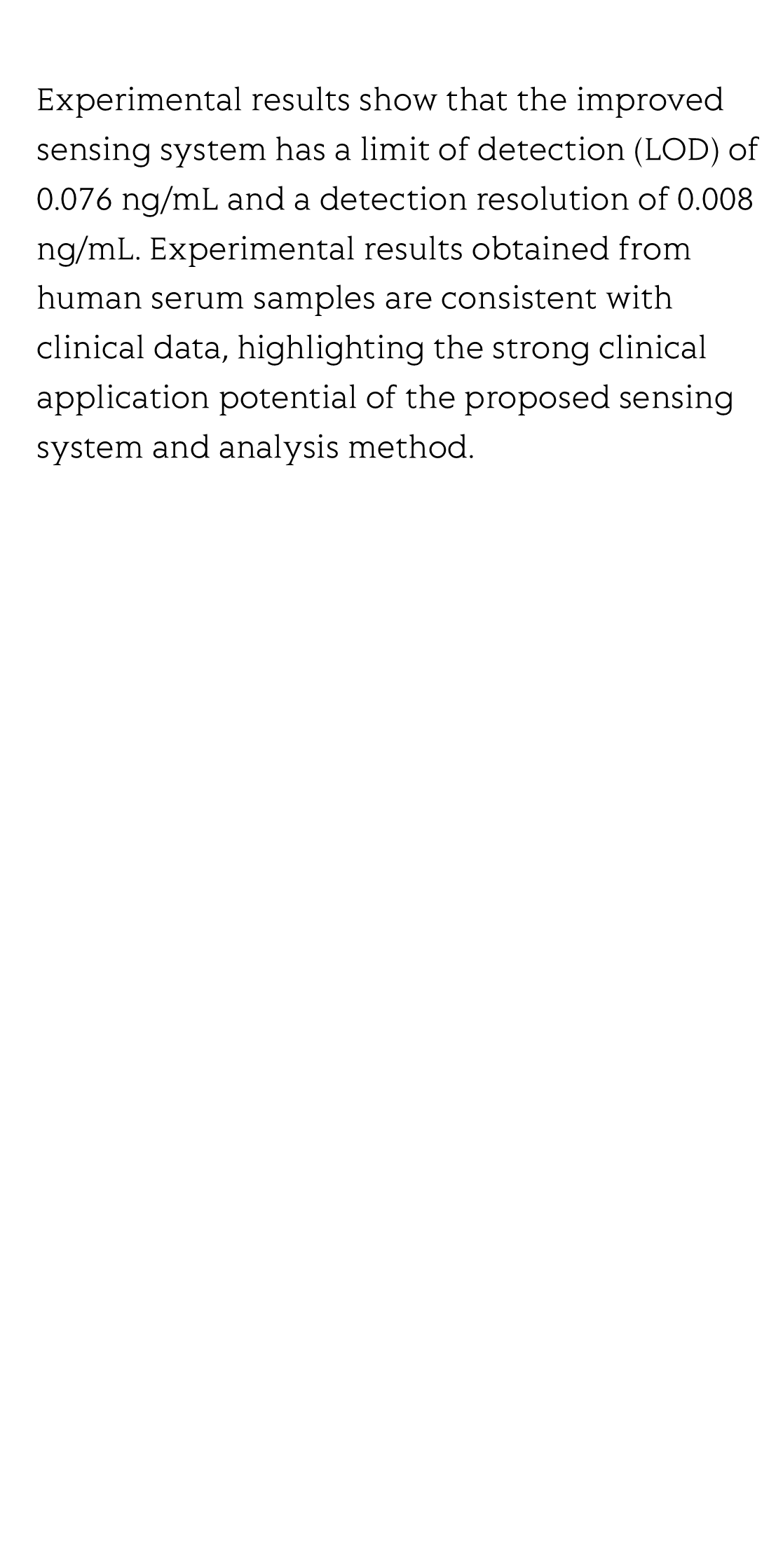

Experimental results show that the improved sensing system has a limit of detection (LOD) of 0.076 ng/mL and a detection resolution of 0.008 ng/mL. Experimental results obtained from human serum samples are consistent with clinical data, highlighting the strong clinical application potential of the proposed sensing system and analysis method.
