Circular cladding waveguides in Pr:YAG fabricated by femtosecond laser inscription: Raman, luminescence properties and guiding performance

由飞秒激光刻字制造的 Pr:YAG 中的圆形包层波导：拉曼、发光特性和引导性能
フェムト秒レーザー刻印によって製造されたPr：YAGの円形クラッド導波路：ラマン、発光特性、およびガイド性能
펨토초 레이저 각인으로 제작된 Pr:YAG의 원형 클래딩 도파관: 라만, 발광 특성 및 가이딩 성능
Guías de ondas de revestimiento circular en Pr: YAG fabricadas por láser de femtosegundos Inscripción: Raman, propiedades de luminiscencia y rendimiento de guiado
Guides d'ondes à gaine circulaire en Pr:YAG fabriqués par inscription laser femtoseconde : Raman, propriétés de luminescence et performances de guidage
Волноводы с круглой оболочкой из Pr: YAG, изготовленные с помощью фемтосекундного лазера

Quanxin Yang 杨全鑫 ¹, Hongliang Liu 刘洪亮 ¹ ² ⁵, Shan He 何珊 ¹, Qingyu Tian 田青玉 ⁴, Bin Xu 徐斌 ⁴, Pengfei Wu 武鹏飞 ¹ ³

¹ Institute of Modern Optics, Nankai University, Tianjin 300350, China
中国天津南开大学现代光学研究所
² Tianjin Key Laboratory of Optoelectronic Sensor and Sensing Network Technology, Tianjin 300350, China
中国天津天津市光电传感器与传感网络技术重点实验室
³ Tianjin Key Laboratory of Micro-scale Optical Information Science and Technology, Tianjin 300350, China
中国天津天津市微尺度光学信息技术科学重点实验室
⁴ Department of Electronic Engineering, Xiamen University, Xiamen 361005, China
中国厦门厦门大学电子工程系
⁵ State Key Laboratory of Crystal Materials, Shandong University, Jinan 250100, China
中国济南山东大学晶体材料国家重点实验室

https://doi.org/10.29026/oea.2021.200005

https://www.oejournal.org/article/doi/10.29026/oea.2021.200005

Opto-Electronic Advances, 28 February 2021

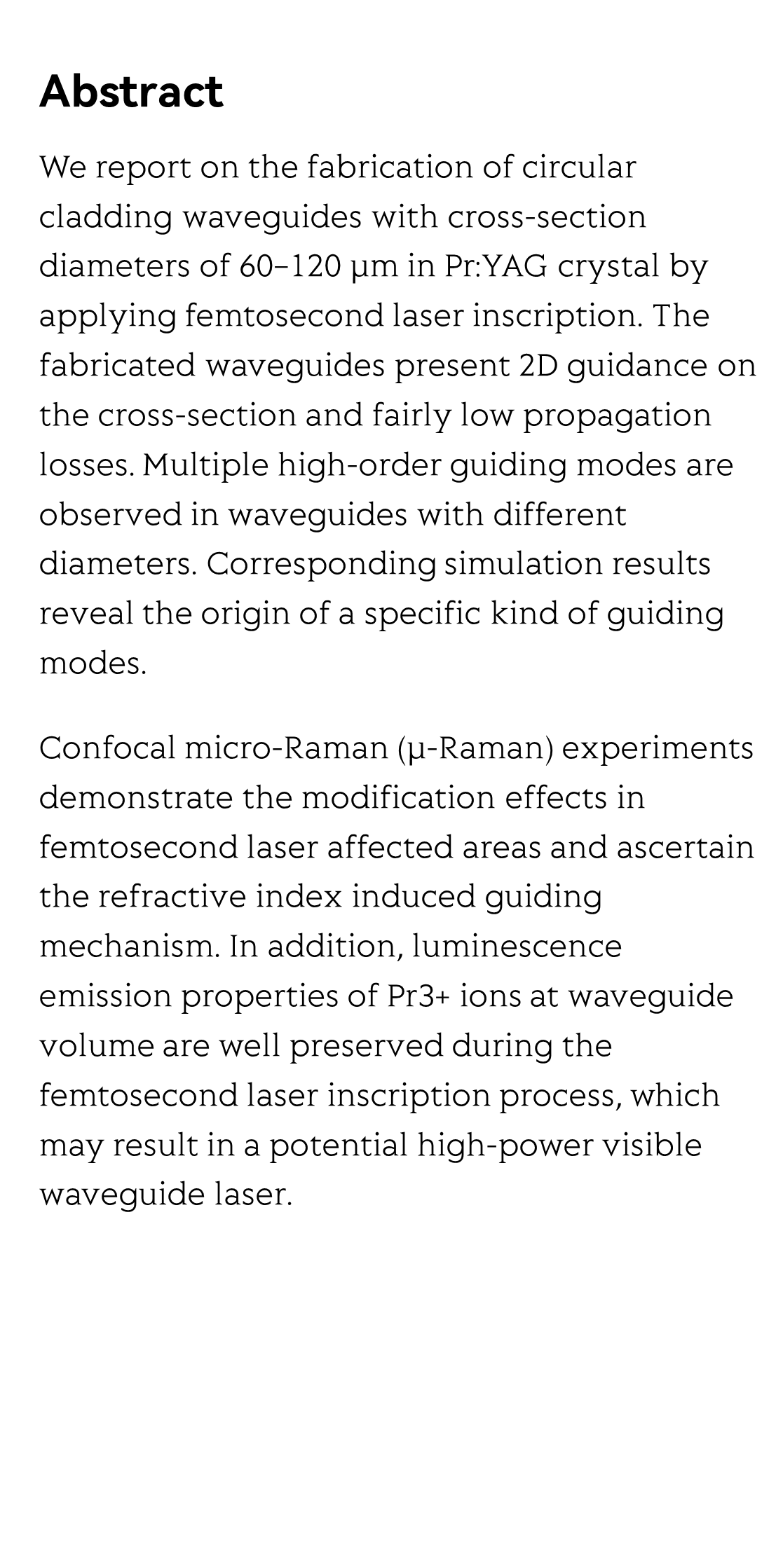

Abstract

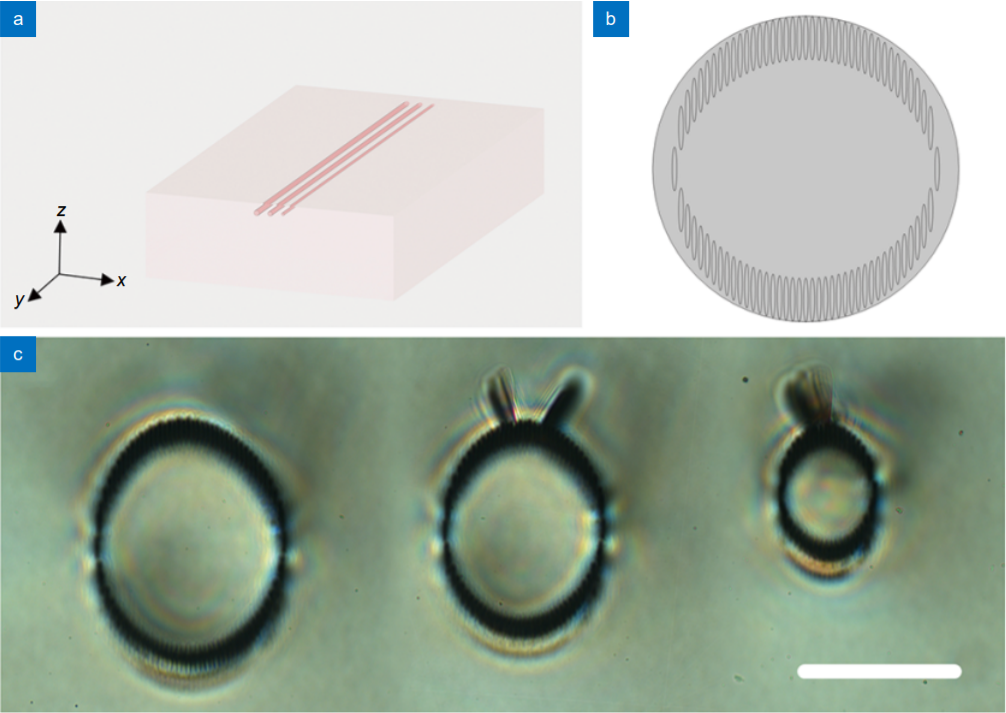

We report on the fabrication of circular cladding waveguides with cross-section diameters of 60−120 μm in Pr:YAG crystal by applying femtosecond laser inscription. The fabricated waveguides present 2D guidance on the cross-section and fairly low propagation losses. Multiple high-order guiding modes are observed in waveguides with different diameters. Corresponding simulation results reveal the origin of a specific kind of guiding modes.

Confocal micro-Raman (μ-Raman) experiments demonstrate the modification effects in femtosecond laser affected areas and ascertain the refractive index induced guiding mechanism. In addition, luminescence emission properties of Pr3+ ions at waveguide volume are well preserved during the femtosecond laser inscription process, which may result in a potential high-power visible waveguide laser.
