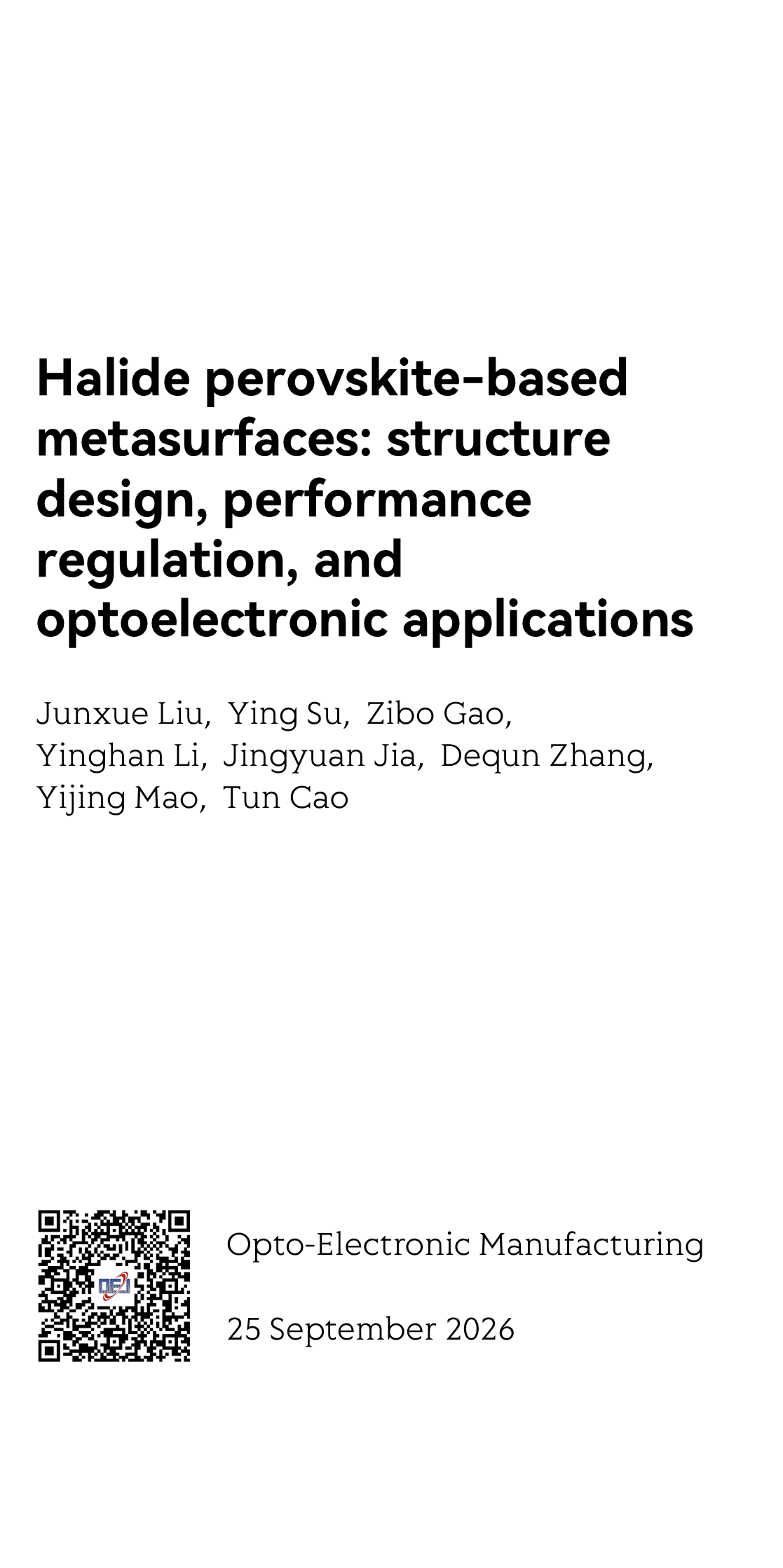

Halide perovskite-based metasurfaces: structure design, performance regulation, and optoelectronic applications
卤化物钙钛矿基超表面:结构设计、性能调节和光电应用
ハロゲン化物ペロブスカイト基超表面:構造設計、性能調整及び光電応用
할로겐화물 칼슘 티타늄 광기 초표면: 구조 설계, 성능 규제 및 광전자 응용 프로그램
Metasuperficies a base de perovskita de haluro: diseño de estructura, regulación de rendimiento y aplicaciones optoelectrónicas
Métasurfaces à base d'halogène perovskite: conception de structure, régulation des performances et applications optoélectroniques
Метаповерхности на основе галодидного перовскита: конструкция структуры, регулирование производительности и оптоэлектронные приложения
Junxue Liu, Ying Su, Zibo Gao, Yinghan Li, Jingyuan Jia, Dequn Zhang, Yijing Mao, Tun Cao
School of Optoelectronic Engineering and Instrumentation Science, Dalian University of Technology, Dalian 116024, China
中国 大连 大连理工大学光电工程与仪器科学学院
Opto-Electronic Manufacturing, 25 September 2026

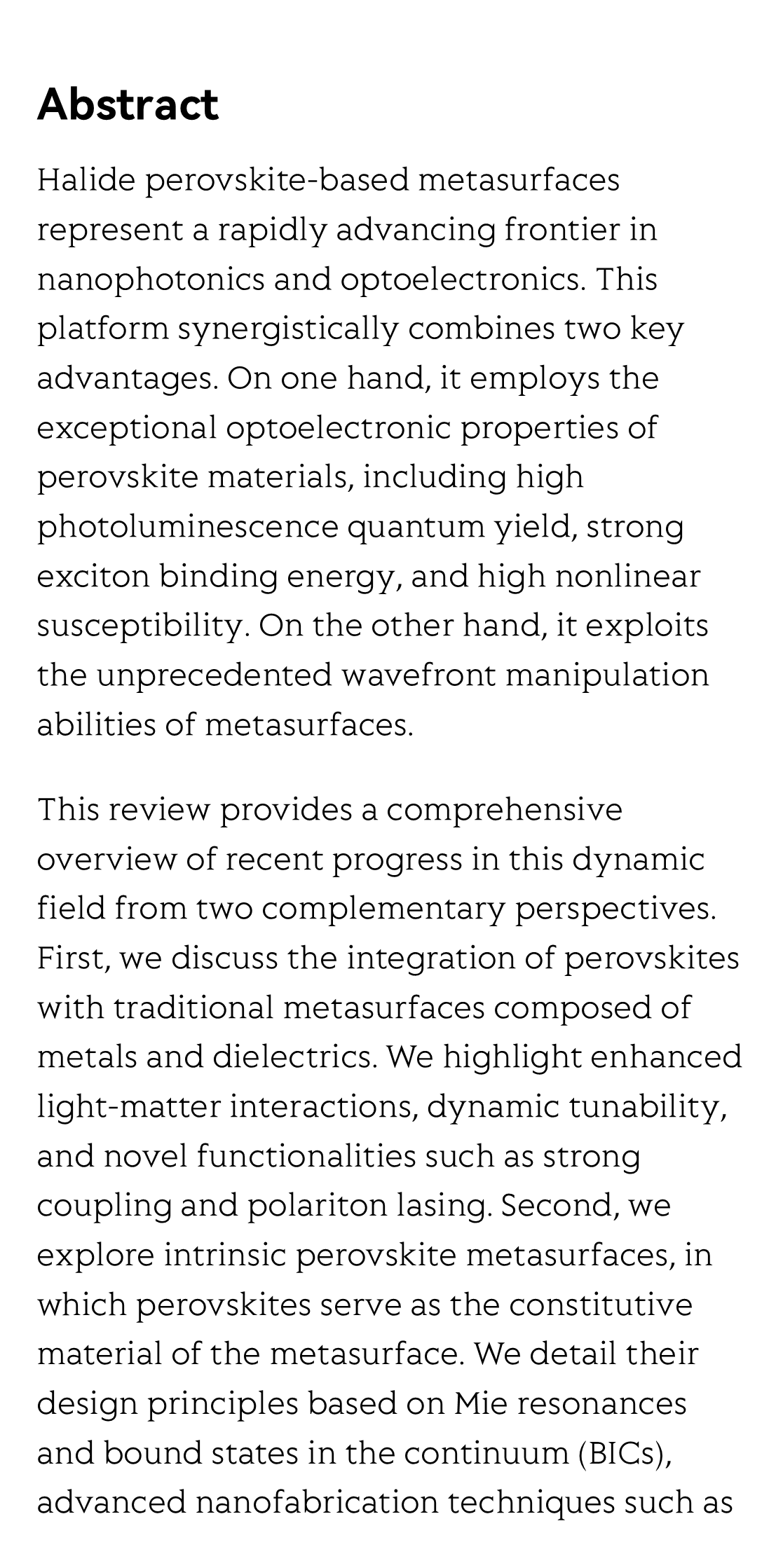

Abstract

Halide perovskite-based metasurfaces represent a rapidly advancing frontier in nanophotonics and optoelectronics. This platform synergistically combines two key advantages. On one hand, it employs the exceptional optoelectronic properties of perovskite materials, including high photoluminescence quantum yield, strong exciton binding energy, and high nonlinear susceptibility. On the other hand, it exploits the unprecedented wavefront manipulation abilities of metasurfaces.

This review provides a comprehensive overview of recent progress in this dynamic field from two complementary perspectives. First, we discuss the integration of perovskites with traditional metasurfaces composed of metals and dielectrics. We highlight enhanced light-matter interactions, dynamic tunability, and novel functionalities such as strong coupling and polariton lasing. Second, we explore intrinsic perovskite metasurfaces, in which perovskites serve as the constitutive material of the metasurface. We detail their design principles based on Mie resonances and bound states in the continuum (BICs), advanced nanofabrication techniques such as nanoimprint lithography, and their inherent advantages for monolithic active devices.

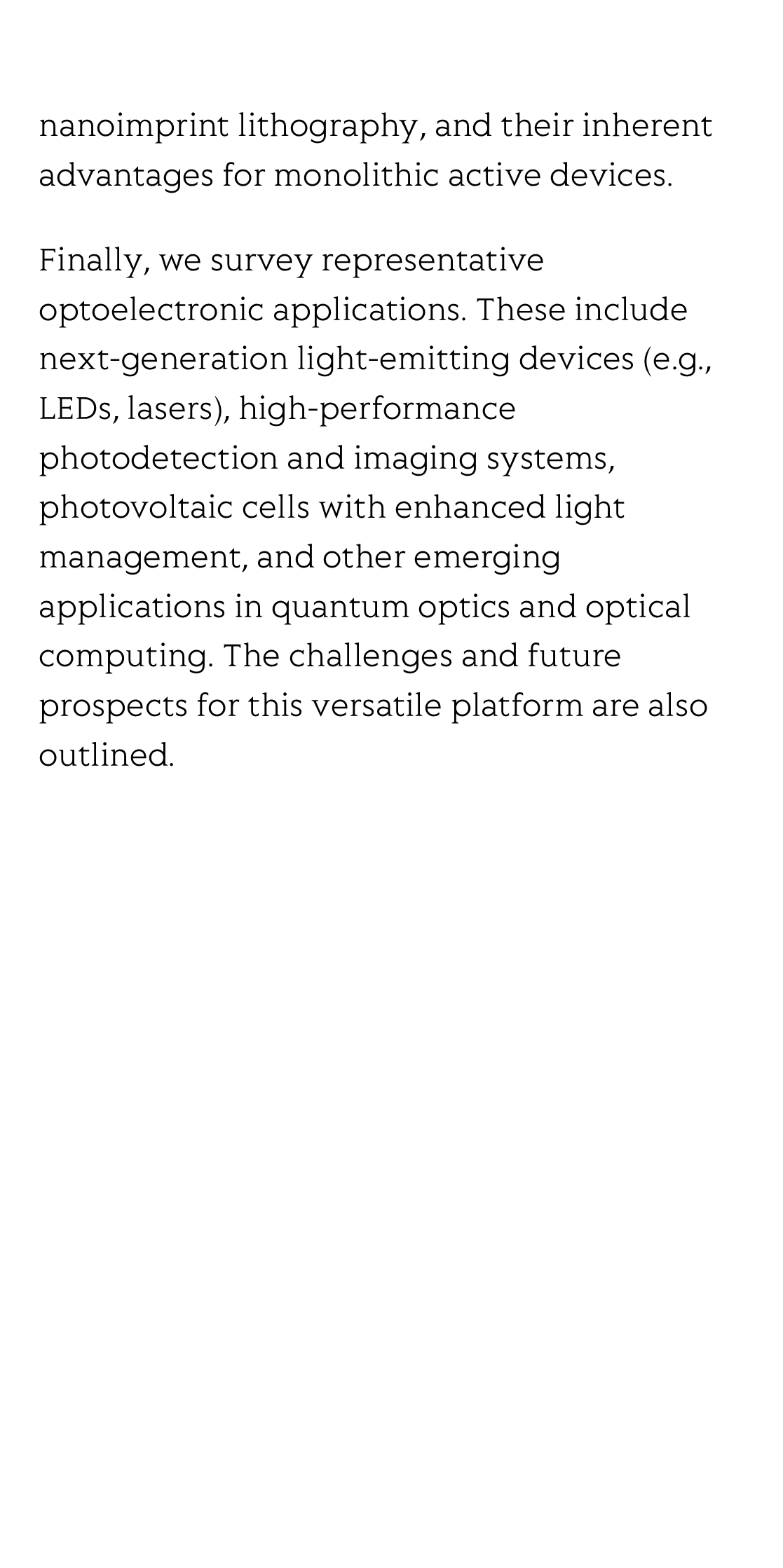

Finally, we survey representative optoelectronic applications. These include next-generation light-emitting devices (e.g., LEDs, lasers), high-performance photodetection and imaging systems, photovoltaic cells with enhanced light management, and other emerging applications in quantum optics and optical computing. The challenges and future prospects for this versatile platform are also outlined.
